AS standard bushing (1~3kV/200~3150A)

The transformer bushing is an insulating bushing that leads the high and low voltage conductor inside the transformer to the outside of the oil tank, not only as a insulation from the conductor to the ground, but also assume the role of fixed lead. Transformer bushing is one of the current carrying components of transformer. In the operation of transformer, it passes through the load current for a long time, and the short-circuit current when the external short circuit of the transformer occurs.<br> Therefore, there are the following requirements for transformer bushing:<br> 1.Must have specified electrical strength and sufficient mechanical strength.<br> 2.It is necessary to have good thermal stability and can withstand the instantaneous overheating in the short circuit.<br> 3.Small shape, small quality, good sealing performance, strong versatility and easy maintenance.

Keywords

Category

AS Standard Bushing

Contact us
Leave Message

Product description

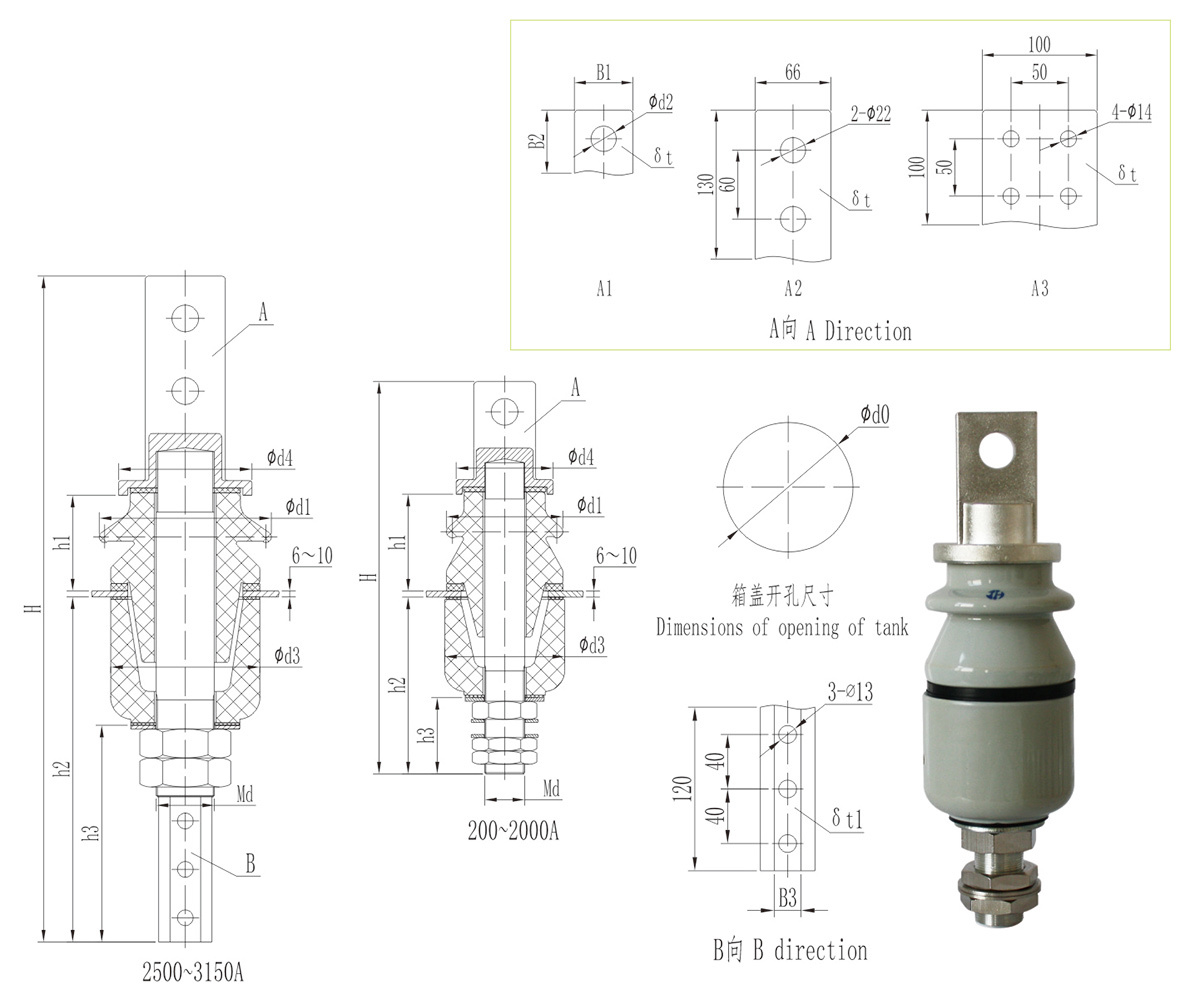

AS standard bushing outline dimensions (1~3kV/200~3150A)



Sequence Number Code Model Dimensions Outdoor terminal Opening Arcing distance Creep distance Shield Weight
(kg)
H h2 h3 Md d1 d2 d3 d4 B1×B2 t B3 t1 d0 h1
1 AM.GAA.001 AS-1/200 205 95 40 M10×1.5 51 Φ14 45 39 22×25 6 — — A1 28 58 70 1 single umbrella 0.5
2 AM.GAA.002 AS-1/315 205 95 40 M12×1.75 51 Φ14 45 39 22×25 6 — — A1 28 58 70 1 single umbrella 0.6
3 AM.GBA.001 AS-3/315 274 119 45 M12×1.75 76 Φ14 70 58 38×45 8 — — A1 48 80 100 1 single umbrella 0.8
4 AM.GBC.001 AS-3/500 274 119 45 M16×2 76 Φ14 70 58 38×45 8 — — A1 48 80 100 1 single umbrella 1
5 AM.GBD.001 AS-3/630 324 146 61 M20×2.5 96 Φ14 99 80 51×55 10 — — A1 70 80 95 1 single umbrella 1.5
6 AM.GBF.001 AS-3/1000 324 146 63 M24×1.5 96 Φ14 99 80 51×55 16 — — A1 70 80 95 1 single umbrella 1.6
7 AM.GBG.001 AS-3/1250 324 146 63 M33×1.5 96 Φ22 99 80 51×55 16 — — A1 70 80 95 1 single umbrella 1.8
8 AM.GBJ.001 AS-3/2000 416 184 78 M36×2 127 4×Φ14 108 90 100×100 14 — — A3 80 80 115 1 single umbrella 2.5
9 AM.GBK.001 AS-3/2500 545 280 174 M45×2 142 2×Φ22 123 110 66×130 16 20 35 A2 95 79 120 1 single umbrella 3.5
10 AM.GBL.001 AS-3/3150 550 285 179 M48×2 142 2×Φ22 123 110 66×130 16 26 36 A2 95 79 120 1 single umbrella 4



Note: Other specifications can be customized according to customer needs.
