Valve series
The oil drain valve is used on the transformer oil tank to open and close the oil circuit. In the valve series, according to the actual needs of transformer manufacturers, our company also designed dual-purpose valve. The valve is installed in the lower part of transformer for oil filling, oil discharging and oil sampling.
Keywords
Product description
Application:
The oil drain valve is used on the transformer oil tank to open and close the oil circuit. In the valve series, according to the actual needs of transformer manufacturers, our company also designed dual-purpose valve. The valve is installed in the lower part of transformer for oil filling, oil discharging and oil sampling.
Instructions for use:
1. Working temperature: -35℃ ~ 105℃;
2. Sealing performance: withstand air pressure 0.5MPa, no leakage for 1 0min;
3. Vacuum strength: the air leakage rate is less than 1 .33PaL/s in 1 0min under the pressure of 32KPa;
4. Installation: The arrow direction should point to the direction of transformer oil discharge;
5. Operation: Turn the hand wheel right to close the valve; turn left to open.

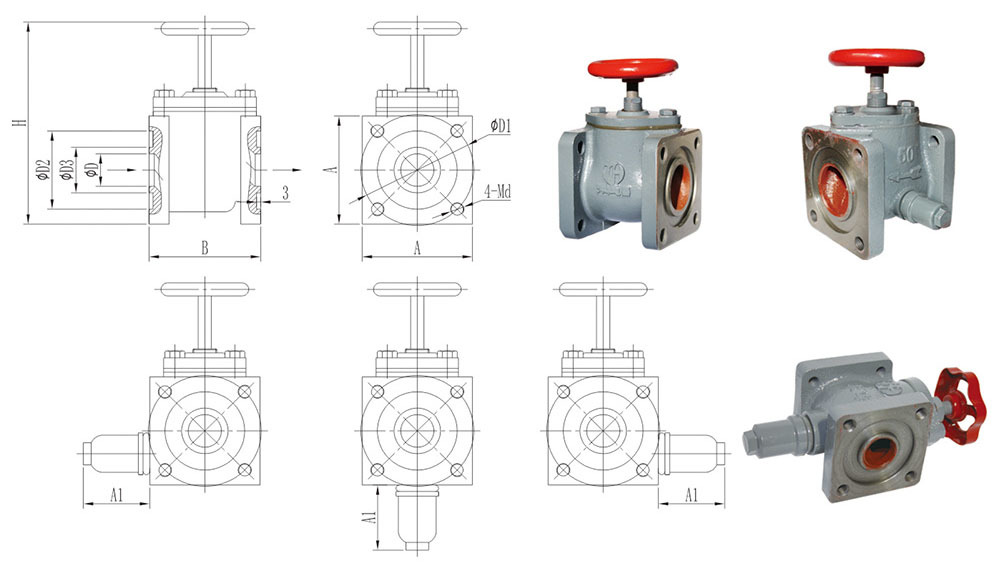

Serial number |
Code |
Model D |
D1 |
D2 |
D3 |
H |
A | A1 | B |
Md |
1 |
AM.VBC.001 |
25 |
85 |
60 |
35 |
150 |
80 | 50 | 80 |
10 |
2 |
AM.VBF.001 |
50 |
125 |
90 |
65 |
210 |
120 | 45 | 120 |
16 |
3 |
AM.VBH.001 |
80 |
160 |
125 |
90 |
260 |
160 | 35 | 160 |
16 |
Note: other specifications can be customized according to customer requirements.
