Epoxy Bushing BFG-2.5/5200 Grey Color

It is the insulating sleeve that leads the transformer's internal high and low voltage leads to the outside of the oil tank, which not only insulates the ground as the lead, but also plays the role of fixing the lead.<br> Therefore, the transformer sleeve has the following requirements:<br> (1) it must have specified electrical strength and sufficient mechanical strength.<br> (2) must have good thermal stability, and can withstand the short circuit of the instant overheating.<br> (3) small appearance, small quality, good sealing performance, strong universality and easy maintenance folding.

Keywords

Category

Epoxy Bushing

Contact us
Leave Message

Product description

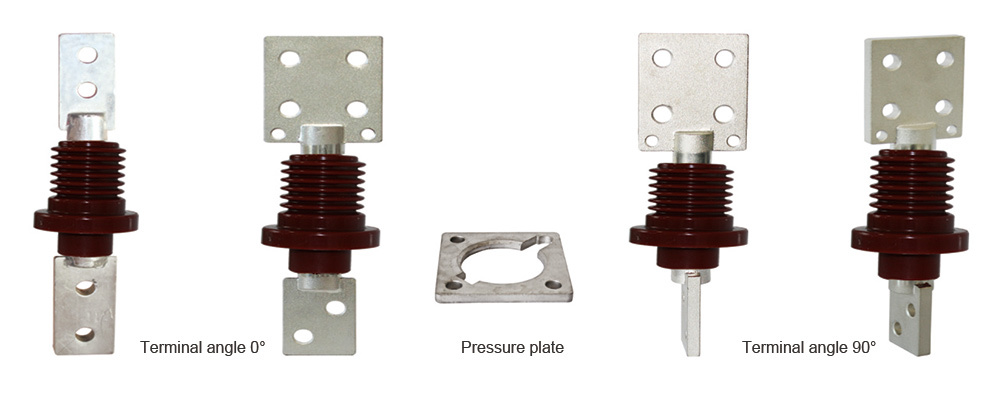

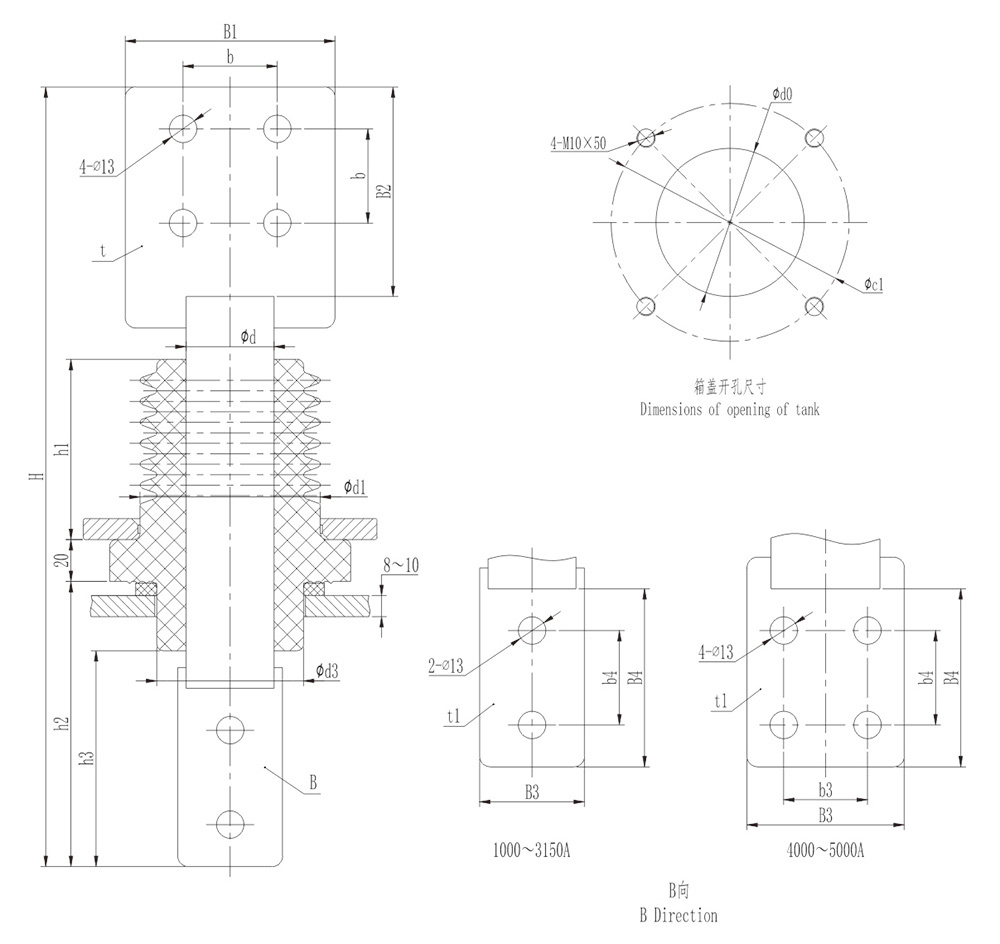

Dry type Resin bushing outline dimensions ( 3kV/1000~5000A plate connected bushing )



Sequence Number Code Model Dimensions Opening Creep distance Terminal angel Weight
（kg）
H h2 h3 d d1 d3 B1×B2 b t B3×B4 b3×b4 t1 c1 d0
1 AM.FBF.001 BFG-3/1000 352 136 103 30 78 55 80×80 45 10 50×85 45 10 130 57 175 0 3
2 AM.FBF.002 BFG-3/1000 352 136 103 30 78 55 80×80 45 10 50×85 45 10 130 57 175 90 3
3 AM.FBH.001 BFG-3/1600 352 136 103 36 86 70 80×80 45 12 50×85 45 12 140 72 165 0 4
4 AM.FBH.002 BFG-3/1600 352 136 103 36 86 70 80×80 45 12 50×85 45 12 140 72 165 90 4
5 AM.FBJ.001 BFG-3/2000 372 136 103 42 86 70 100×100 45 12 50×85 45 15 140 72 165 0 5
6 AM.FBJ.002 BFG-3/2000 372 136 103 42 86 70 100×100 45 12 50×85 45 15 140 72 165 90 5
7 AM.FBL.001 BFG-3/3150 372 136 103 48 86 70 100×100 45 16 50×85 45 20 140 72 155 0 6
8 AM.FBL.002 BFG-3/3150 372 136 103 48 86 70 100×100 45 16 50×85 45 20 140 72 155 90 6



Note: Other specifications can be customized according to customer needs.
