DIN 42530 transformer bushing (1kV/1000~3150A) (DIN42530)

The LV series are solid porcelain open type bushings designed in accordance with the standard DIN 42539/42530 .<br> Primarily used for indoor and outdoor applications in the field of distribution transformers, these bushings are available in several designs and can be customized to fit almost any kind of customer requirement upon request (i.e. tin plating, special drillings, special connectors, etc.). The LV series features a porcelain insulating body on the oil side; in addition, rods are available both in copper or brass.


Keywords



Product description

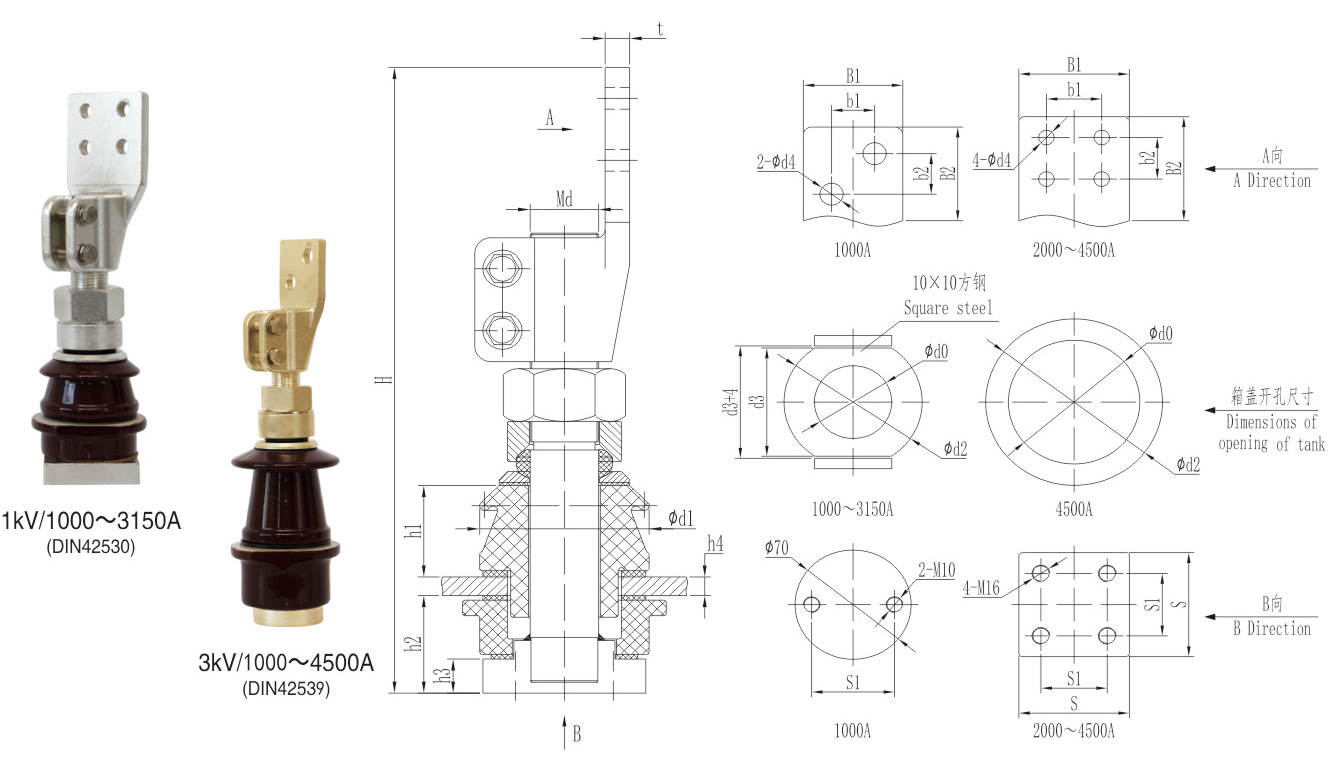

DIN 42530 transformer bushing outline dimensions (1~3kV/1000~4500A)



Sequence Number Code Model Dimensions Opening Arcing distance Creep distance Shield Weight
(kg)
H h2 h3 h4 Md d1 d2 d3 d4 B1×B2 b1×b2 t S S1 d0 h1
1 AM.DAF.001 DIN-1/1000 322 58 17 6~10 M30×2 90 110 90 14 60×60 26×26 10 50 56 59 75 1 single umbrella 5.5
2 AM.DAJ.001 DIN-1/2000 404 63 22 8~16 M42×3 104 125 104 14 100×100 50×40 15 100 60 70 59 70 1 single umbrella 12
3 AM.DAL.001 DIN-1/3150 434 68 27 8~16 M48×3 125 150 125 14 120×120 60×40 15 110 60 90 59 75 1 single umbrella 16.5
4 AM.DBF.001 DIN-3/1000 374 78 17 6~10 M30×2 110 110 90 14 60×60 26×26 10 50 56 89 120 1 single umbrella 6.5
5 AM.DBJ.001 DIN-3/2000 454 83 22 8~16 M42×3 125 125 104 14 100×100 50×40 15 100 60 70 89 120 1 single umbrella 13.5
6 AM.DBL.001 DIN-3/3150 487 88 27 8~16 M48×3 143 150 125 14 120×120 60×40 15 110 60 90 92 120 1 single umbrella 18.7
7 AM.DBN.001 DIN-3/4500 602.5 101 30 10~20 M55×3 170 160 18 150×150 70×70 20 160 100 119 100 125 1 single umbrella 33.5



Note: Other specifications can be customized according to customer needs.
