DIN42533/42534 transformer porcelain bushing (12~52kV/1000~3150A DIN42533) (52KV/1000~3150A DIN42534)

The HV series with the widest range of available designs and customizations. This bushing type is widely used for insulating power transformers on the low-voltage side in both indoor and outdoor applications.<br> The HV series are solid porcelain liquid filled (hollow core oil communicating) designed in accordance with the standards EN 50180 and EN 50243 (formerly DIN 42531-2-3-4 & 42541).<br> Transformer oil fills the space between the conductor (a rigid cylindrical copper stem) and the porcelain, increasing the electrical insulation and dissipating the thermal energy generated by the high current.<br> Featuring an extensive range of available customizations, the HV bushing can be manufactured according to almost any kind of customer requirement (i.e. rod extension, special connectors, special finish surface, etc.)<br> Designed for both indoor and outdoor applications, the HV bushing series can even operate under extreme environmental conditions (i.e. very polluted areas, very cold/hot ambient temperatures, very corrosive/aggressive environments, etc.).


Keywords



Product description

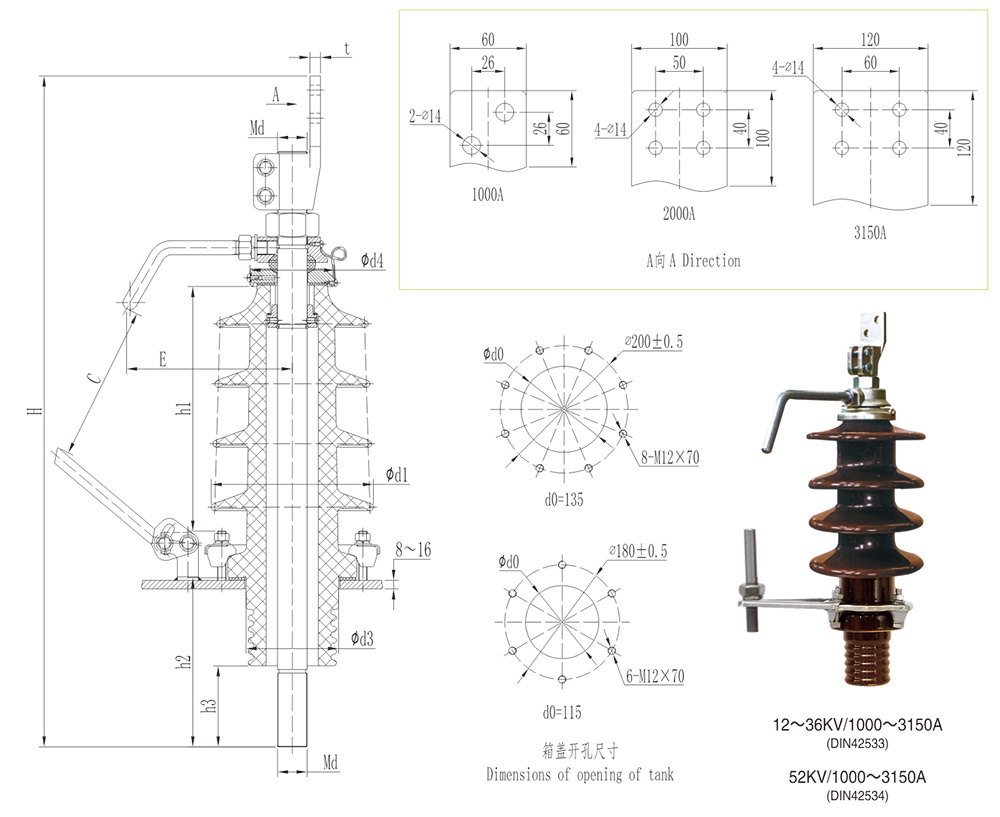

DIN42533/42534 transformer porcelain bushing outline dimensions ( 12~52kV/1000~3150A)



Sequence Number Code Model Dimensions Opening Arcing distance Creep distance Shield Weight
(kg)
H h2 h3 d4 t Md d1 d3 E C d0 h1
1 AM.DDF.001 DIN-12/1000 637 175 85 100 10 M30×2 170 108 225 85 115 166 340 2 single umbrella 18
2 AM.DDJ.001 DIN-12/2000 737 205 115 120 15 M42×3 170 131 235 85 135 167 350 2 single umbrella 23
3 AM.DDL.001 DIN-12/3150 772 215 125 120 15 M48×3 170 131 235 85 135 167 350 2 single umbrella 29
4 AM.DFF.001 DIN-24/1000 722 185 85 100 10 M30×2 185 108 225 155 115 241 500 3 single umbrella 18
5 AM.DFJ.001 DIN-24/2000 822 215 115 120 15 M42×3 210 131 235 155 135 242 500 3 single umbrella 29
6 AM.DFL.001 DIN-24/3150 857 225 125 120 15 M48×3 210 131 235 155 135 242 500 3 single umbrella 33
7 AM.DGF.001 DIN-36/1000 852 210 85 100 10 M30×2 175 108 225 220 115 346 640 4 single umbrella 22
8 AM.DGJ.001 DIN-36/2000 952 240 115 120 15 M42×3 230 131 235 220 135 347 750 4 single umbrella 35
9 AM.DGL.001 DIN-36/3150 987 250 125 120 15 M48×3 230 131 235 220 135 347 750 4 single umbrella 40
10 AM.DJF.001 DIN-52/1000 1012 280 100 120 10 M30×2 250 131 —— —— 135 432 950 6 single umbrella 36
11 AM.DJJ.001 DIN-52/2000 1112 310 130 120 15 M42×3 250 131 —— —— 135 432 950 6 single umbrella 45
12 AM.DJL.001 DIN-52/3150 1147 320 140 120 15 M48×3 250 131 —— —— 135 432 950 6 single umbrella 50



Note: Other specifications can be customized according to customer needs.
