Wafer type bushing (1kV/315~630A)

Keywords

Category

Wafer Type Bushing

Contact us
Leave Message

Product description

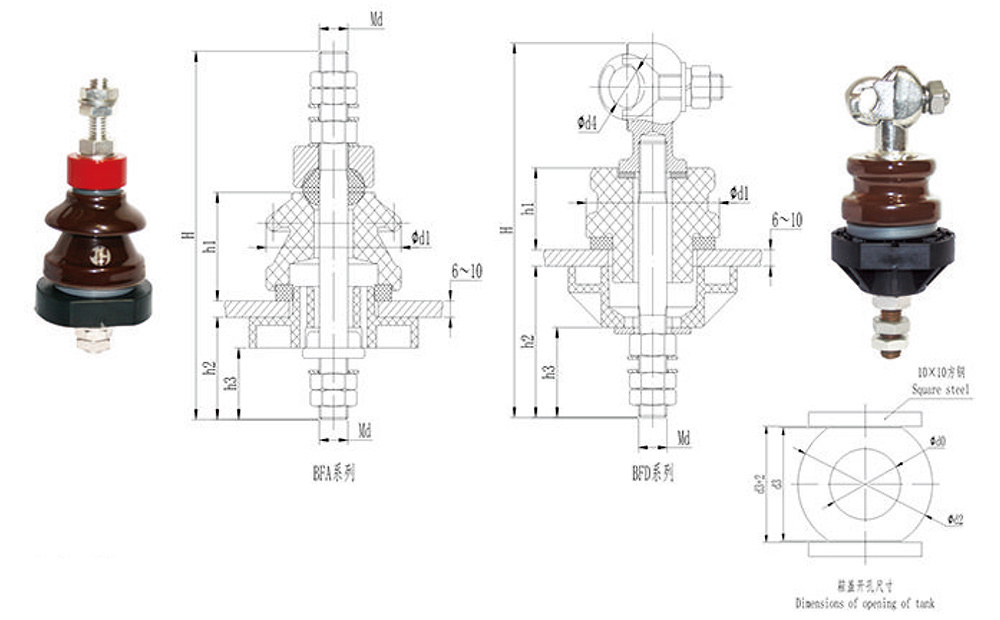

Wafer type bushing outline dimensions (1kV/315~630A)



Sequence Number Code Model Dimensions Opening Arcing distance Creep distance Shield Weight
（kg）
H h2 h3 Md d1 d2 d3 d4 d0 h1
1 AM.AAA.701 BFA-1/315 155 40 25 M12×1.75 56 65 55 —— 30 53 65 1 single umbrella 0.4
2 AM.AAB.701 BFA-1/400 180 50 35 M16×2 76 95 80 —— 50 53 75 1 single umbrella 1.1
3 AM.AAD.701 BFA-1/630 180 50 35 M20×2.5 76 95 80 —— 50 53 75 1 single umbrella 1.2
4 AM.AAA.751 BFD-1/315 153 60 30 M12×1.75 54 65 55 Φ14 30 40 45 1 single umbrella 0.5
5 AM.AAB.751 BFD-1/400 183 74 44 M16×2 75 95 80 Φ20 50 40 45 1 single umbrella 1.2
6 AM.AAD.751 BFD-1/630 191 76 46 M20×2.5 75 95 80 Φ24 50 40 45 1 single umbrella 1.3



Note: Other specifications can be customized according to customer needs.
