Wafer type bushing (1~3kV/800~1250A screw connected bushing)

The transformer sleeve is the main insulating device outside the transformer box. The lead wire of the transformer winding must pass through the insulating sleeve to insulate the lead wire between the lead wire and the lead wire between the transformer shell, and to fix the lead wire at the same time.Due to different voltage levels, the insulation sleeve has pure porcelain sleeves, oil-filled sleeves and capacitive sleeves.Pure porcelain bushing is mostly used for transformers of 10kV and below. It is to wear a conductive copper rod in the porcelain bushing, and the inside of the porcelain bushing is air insulated.The oil-filled bushing is mainly used in the 35kV class transformer. It is oil-filled in the porcelain bushing. A conductive copper pole is worn in the porcelain bushing.Capacitive bushing is composed of main insulating capacitor core, outer insulating upper and lower porcelain parts, connecting sleeve, oil pillow, spring assembly, base, equalizing ball, measuring terminal, wiring terminal, rubber washer, insulating oil, etc.It is used in high voltage transformers above 100kV.

Keywords

Category

Wafer Type Bushing

Contact us
Leave Message

Product description

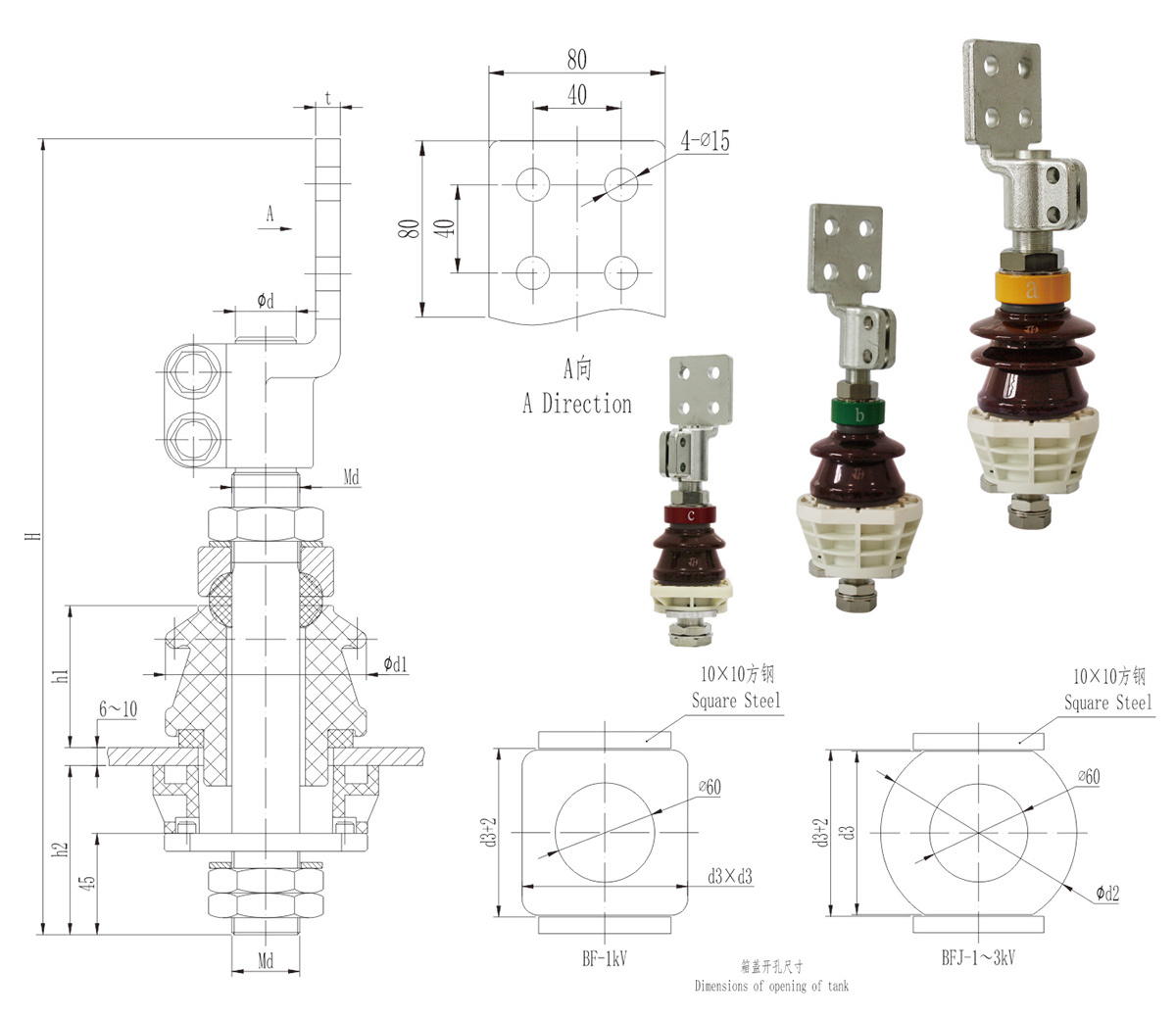

Wafer type bushing outline dimensions(1~3kV/800~1250A screw connected bushing)



Sequence Number Code Model Dimensions Opening Arcing distance Creep distance Shield Weight
（kg）
H h2 Md Φd d1 d2 d3 t d0 h1
1 AM.AAE.001 BF-1/800 343 75 M24×1.5 —— 89 —— 100 10 60 63 80 1 single umbrella 5.1
2 AM.AAF.001 BF-1/1000 353 75 M30×1.5 27 89 —— 100 11 60 63 75 1 single umbrella 5.3
3 AM.AAG.001 BF-1/1250 353 75 M33×1.5 30 89 —— 100 12 60 63 75 1 single umbrella 6
4 AM.AAE.801 BFJ-1/800 373 105 M24×1.5 —— 89 120 100 10 60 63 80 1 single umbrella 5.7
5 AM.AAF.801 BFJ-1/1000 383 105 M30×1.5 27 89 120 100 11 60 63 75 1 single umbrella 5.9
6 AM.AAG.801 BFJ-1/1250 383 105 M33×1.5 30 89 120 100 12 60 63 75 1 single umbrella 6.2
7 AM.ABE.801 BFJ-3/800 393 105 M24×1.5 —— 99 120 100 10 60 83 130 2 single umbrella 6
8 AM.ABF.801 BFJ-3/1000 403 105 M30×1.5 27 99 120 100 11 60 83 130 2 single umbrella 6.7
9 AM.ABG.801 BFJ-3/1250 403 105 M33×1.5 30 99 120 100 12 60 83 130 2 single umbrella 7

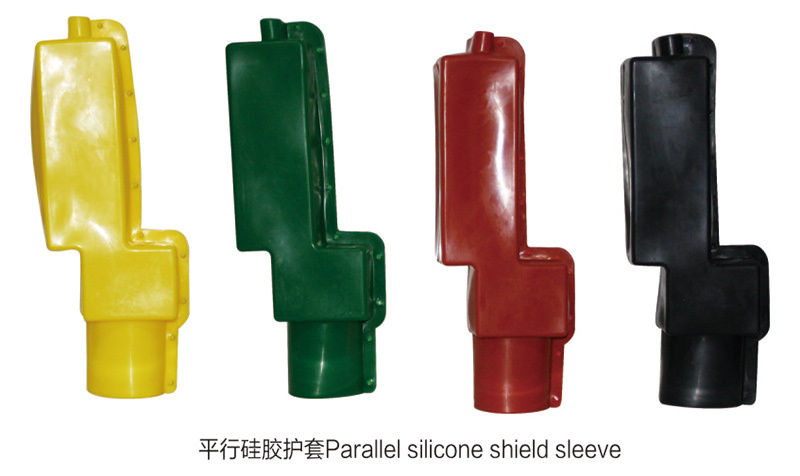

Note: adding "T" after the code indicates that it is equipped with sheath. Other specifications can be customized according to customer requirements.
