Transformer HV LT Epoxy Bushing with Copper Stud (1kV/1000~3150A T type connected bushing)

It is the insulating sleeve that leads the transformer's internal high and low voltage leads to the outside of the oil tank, which not only insulates the ground as the lead, but also plays the role of fixing the lead.<br> Therefore, the transformer sleeve has the following requirements:<br> (1) it must have specified electrical strength and sufficient mechanical strength.<br> (2) must have good thermal stability, and can withstand the short circuit of the instant overheating.<br> (3) small appearance, small quality, good sealing performance, strong universality and easy maintenance folding.

Keywords

Category

Epoxy Bushing

Contact us
Leave Message

Product description

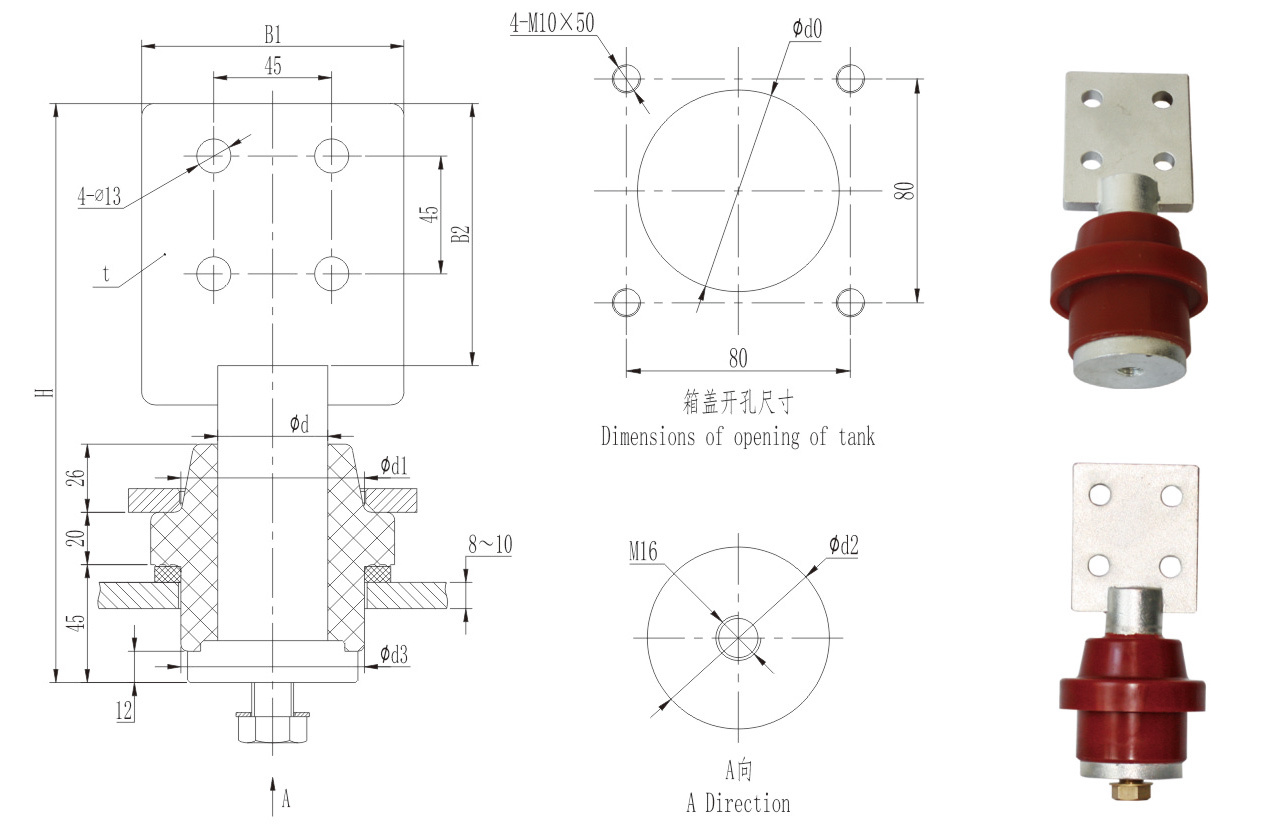

Transformer HV LT Epoxy Bushing with Copper Stud outline dimensions ( 1kV/1000~3150A T type connected bushing )



Sequence Number Code Model Dimensions Opening Creep distance Weight
（kg）
H d d1 d2 d3 B1×B2 t d0
1 AM.FAF.006 BFG-1/1000 201 30 55 50 55 80×80 10 57 35 1.7
2 AM.FAH.009 BFG-1/1600 201 36 70 65 70 80×80 12 72 35 2.2
3 AM.FAJ.007 BFG-1/2000 221 42 70 65 70 100×100 12 72 35 3.1
4 AM.FAL.007 BFG-1/3150 221 48 70 65 70 100×100 16 72 30 4



Note: Other specifications can be customized according to customer needs.
