Epoxy bushing for transformer (1~3kV/630~1600A screw connected bushing)

It is the insulating sleeve that leads the transformer's internal high and low voltage leads to the outside of the oil tank, which not only insulates the ground as the lead, but also plays the role of fixing the lead.<br> Therefore, the transformer sleeve has the following requirements:<br> (1) it must have specified electrical strength and sufficient mechanical strength.<br> (2) must have good thermal stability, and can withstand the short circuit of the instant overheating.<br> (3) small appearance, small quality, good sealing performance, strong universality and easy maintenance folding.

Keywords

Category

Epoxy Bushing

Contact us
Leave Message

Product description

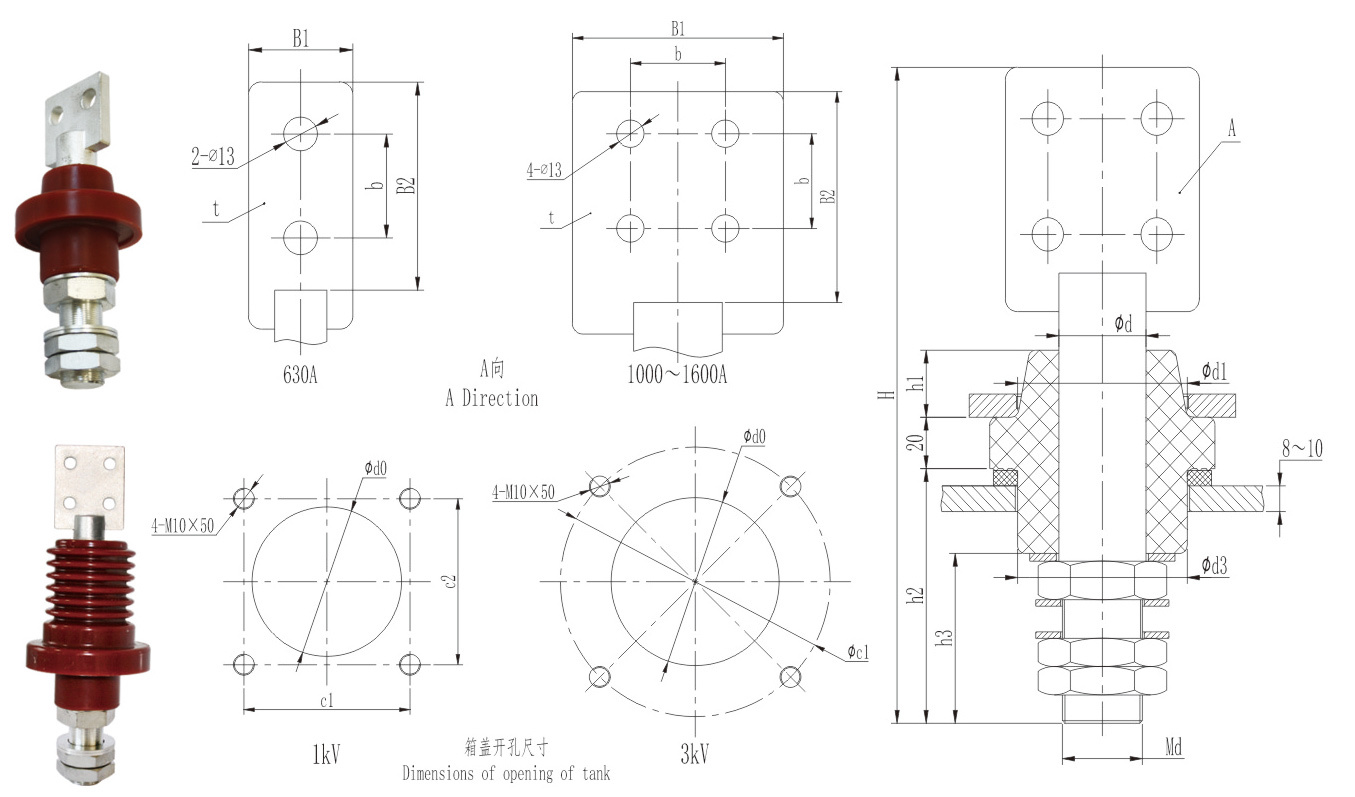

Epoxy bushing for transformer outline dimensions (1~3kV/630~1600A screw connected bushing)



Sequence Number Code Model Dimensions Opening Arcing distance Creep distance Weight
（kg）
H h2 h3 Md d d1 d3 B1×B2 b t c1×c2 d0 h1
1 AM.FAD.006 BFG-1/630 241 90 57 M20×2.5 20 43 43 40×80 40 8 50×70 45 26 35 1.3
2 AM.FAF.009 BFG-1/1000 255 99 66 M30×1.5 30 55 55 80×80 45 10 80×80 57 26 35 2.3
3 AM.FAH.012 BFG-1/1600 255 99 66 M33×1.5 36 70 70 80×80 45 12 80×80 72 26 35 2.8
4 AM.FBF.005 BFG-3/1000 315 99 66 M30×1.5 30 78 55 80×80 45 10 130 57 86 175 3.3
5 AM.FBH.004 BFG-3/1600 315 99 66 M33×1.5 36 86 70 80×80 45 12 140 72 86 165 4.3



Note: Other specifications can be customized according to customer needs.
