Wafer type bushing (1~3kV/1600~4000A T type connected bushing)

The transformer sleeve is the main insulating device outside the transformer box. The lead wire of the transformer winding must pass through the insulating sleeve to insulate the lead wire between the lead wire and the lead wire between the transformer shell, and to fix the lead wire at the same time.Due to different voltage levels, the insulation sleeve has pure porcelain sleeves, oil-filled sleeves and capacitive sleeves.Pure porcelain bushing is mostly used for transformers of 10kV and below. It is to wear a conductive copper rod in the porcelain bushing, and the inside of the porcelain bushing is air insulated.The oil-filled bushing is mainly used in the 35kV class transformer. It is oil-filled in the porcelain bushing. A conductive copper pole is worn in the porcelain bushing.Capacitive bushing is composed of main insulating capacitor core, outer insulating upper and lower porcelain parts, connecting sleeve, oil pillow, spring assembly, base, equalizing ball, measuring terminal, wiring terminal, rubber washer, insulating oil, etc.It is used in high voltage transformers above 100kV.

Keywords

Category

Wafer Type Bushing

Contact us
Leave Message

Product description

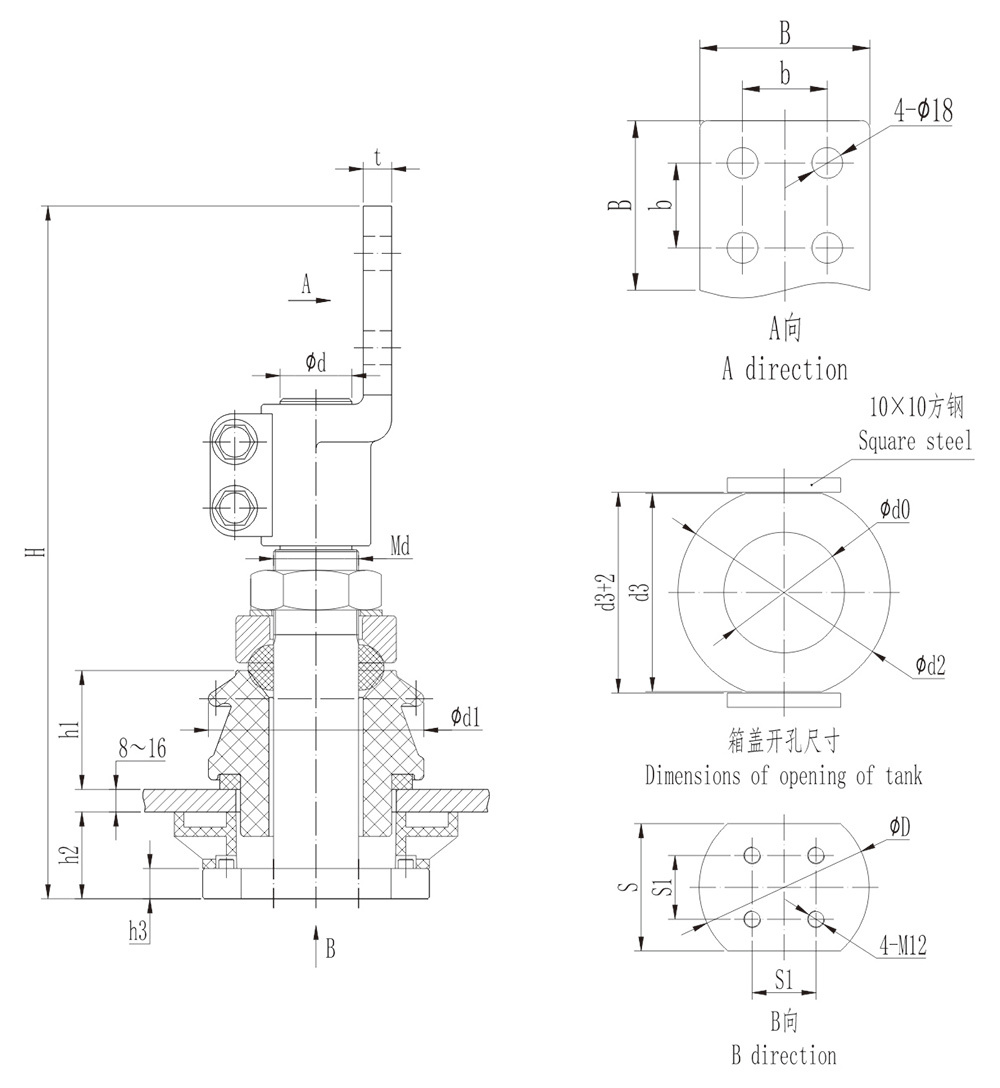

Wafer type bushing outline dimensions(1~3kV/1600~4000A T type connected bushing)



Sequence Number Code Model Dimensions Opening Arcing distance Creep distance Shield Weight
（kg）
H h2 h3 Md Φd d1 d2 d3 B b t D S S1 d0 h1
1 AM.AAH.001 BF-1/1600 362 46 16 M36×2 33 103 130 110 100 50 14 100 90 45 70 63 75 1 single umbrella 9
2 AM.AAJ.001 BF-1/2000 362 46 16 M42×2 38 103 130 110 100 50 15 100 90 45 70 63 75 1 single umbrella 9.5
3 AM.AAK.001 BF-1/2500 367 46 16 M45×2 38 114 150 140 100 50 15 120 90 45 85 63 80 1 single umbrella 11
4 AM.AAL.001 BF-1/3150 367 46 16 M48×2 42 114 150 140 100 50 16 120 90 45 85 63 80 1 single umbrella 12
5 AM.AAM.001 BF-1/4000 417 50 20 M52×2 48 130 170 150 120 60 18 135 120 55 95 65 85 1 single umbrella 18
6 AM.AAH.801 BFJ-1/1600 392 76 16 M36×2 33 103 130 110 100 50 14 100 90 45 70 63 75 1 single umbrella 10
7 AM.AAJ.801 BFJ-1/2000 392 76 16 M42×2 38 103 130 110 100 50 15 100 90 45 70 63 75 1 single umbrella 10.5
8 AM.AAK.801 BFJ-1/2500 397 76 16 M45×2 38 114 150 140 100 50 15 120 90 45 85 63 80 1 single umbrella 12
9 AM.AAL.801 BFJ-1/3150 397 76 16 M48×2 42 114 150 140 100 50 16 120 90 45 85 63 80 1 single umbrella 13
10 AM.AAM.801 BFJ-1/4000 447 80 20 M52×2 48 130 170 150 120 60 18 135 120 55 95 65 85 1 single umbrella 20
11 AM.ABH.801 BFJ-3/1600 412 76 16 M36×2 33 113 130 110 100 50 14 100 90 45 70 83 125 2 single umbrella 12
12 AM.ABJ.801 BFJ-3/2000 412 76 16 M42×2 38 113 130 110 100 50 15 100 90 45 70 83 125 2 single umbrella 14
13 AM.ABK.801 BFJ-3/2500 417 76 16 M45×2 38 124 150 140 100 50 15 120 90 45 85 83 130 2 single umbrella 16
14 AM.ABL.801 BFJ-3/3150 417 76 16 M48×2 42 124 150 140 100 50 16 120 90 45 85 83 130 2 single umbrella 21
15 AM.ABM.801 BFJ-3/4000 467 80 20 M52×2 48 140 170 150 120 60 18 135 120 55 95 85 140 2 single umbrella 23

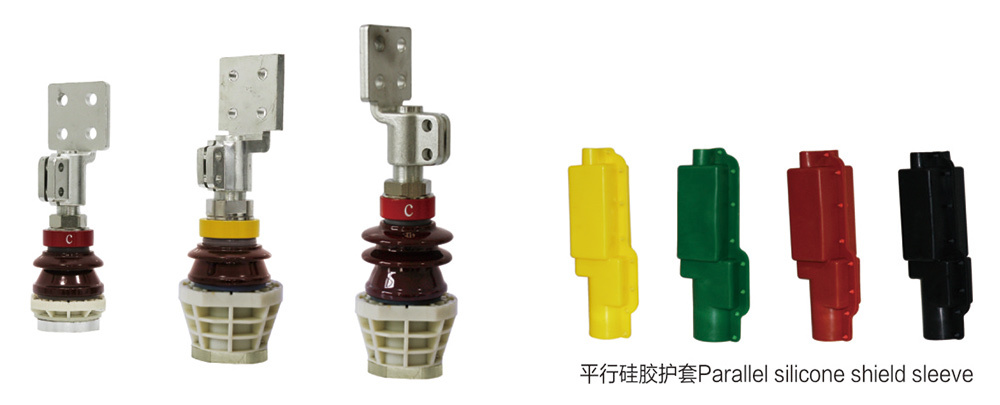

Note: adding "T" after the code indicates that it is equipped with sheath. Other specifications can be customized according to customer requirements.
