Wafer type bushing (1~3kV/5000~7000A T type connected bushing)

The transformer sleeve is the main insulating device outside the transformer box. The lead wire of the transformer winding must pass through the insulating sleeve to insulate the lead wire between the lead wire and the lead wire between the transformer shell, and to fix the lead wire at the same time.Due to different voltage levels, the insulation sleeve has pure porcelain sleeves, oil-filled sleeves and capacitive sleeves.Pure porcelain bushing is mostly used for transformers of 10kV and below. It is to wear a conductive copper rod in the porcelain bushing, and the inside of the porcelain bushing is air insulated.The oil-filled bushing is mainly used in the 35kV class transformer. It is oil-filled in the porcelain bushing. A conductive copper pole is worn in the porcelain bushing.Capacitive bushing is composed of main insulating capacitor core, outer insulating upper and lower porcelain parts, connecting sleeve, oil pillow, spring assembly, base, equalizing ball, measuring terminal, wiring terminal, rubber washer, insulating oil, etc.It is used in high voltage transformers above 100kV.

Keywords

Category

Wafer Type Bushing

Contact us
Leave Message

Product description

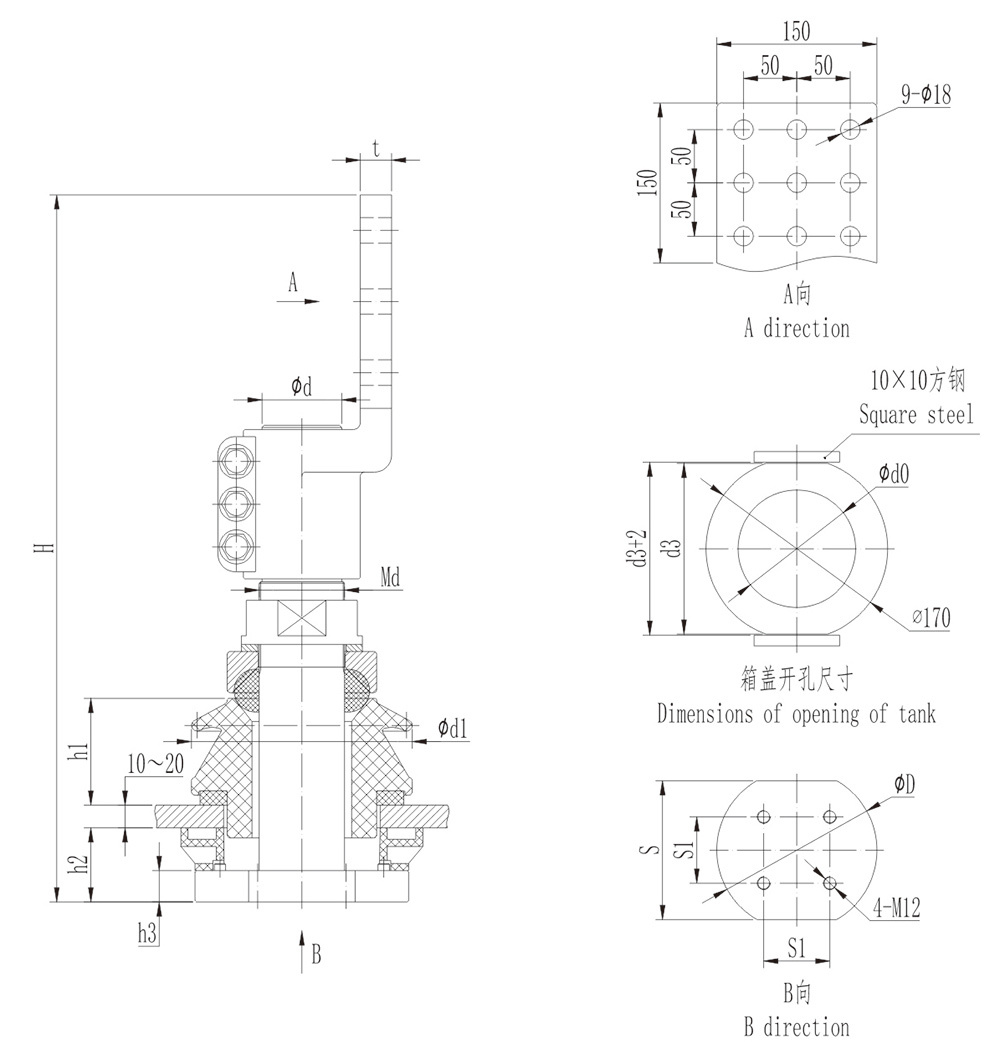

Wafer type bushing outline dimensions(1~3kV/5000~7000A T type connected bushing)



Sequence Number Code Model Dimensions Opening Arcing distance Creep distance Shield Weight
（kg）
H h2 h3 Md Φd d1 d3 t D S S1 d0 h1
1 AM.AAN.001 BF-1/5000 477 50 20 M56×2 52 130 150 20 135 120 55 95 65 85 1 single umbrella 20
2 AM.AAP.001 BF-1/6300 497 52 22 M60×2 56 155 160 22 150 130 62 110 75 110 1 single umbrella 23
3 AM.AAQ.001 BF-1/7000 502 52 22 M65×2 60 155 160 24 150 130 62 110 75 110 1 single umbrella 26
4 AM.AAN.801 BFJ-1/5000 507 80 20 M56×2 52 130 150 20 135 120 55 95 65 85 1 single umbrella 22
5 AM.AAP.801 BFJ-1/6300 527 82 22 M60×2 56 155 160 22 150 130 62 110 75 110 1 single umbrella 25
6 AM.AAQ.801 BFJ-1/7000 532 82 22 M65×2 60 155 160 24 150 130 62 110 75 110 1 single umbrella 28
7 AM.ABN.801 BFJ-3/5000 527 80 20 M56×2 52 140 150 20 135 120 55 95 85 140 2 single umbrella 26
8 AM.ABP.801 BFJ-3/6300 547 82 22 M60×2 56 165 160 22 150 130 62 110 95 180 2 single umbrella 28
9 AM.ABQ.801 BFJ-3/7000 552 82 22 M65×2 60 165 160 24 150 130 62 110 95 180 2 single umbrella 30



Note: adding "T" after the code indicates that it is equipped with sheath. Other specifications can be customized according to customer requirements.
