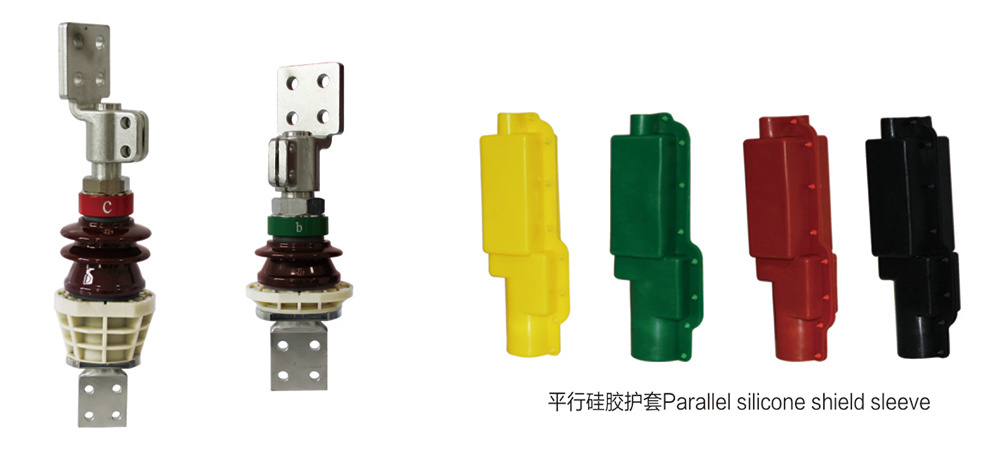

Wafer type bushing (1~3kV/1600~4000A Plate connected bushing)

The transformer sleeve is the main insulating device outside the transformer box. The lead wire of the transformer winding must pass through the insulating sleeve to insulate the lead wire between the lead wire and the lead wire between the transformer shell, and to fix the lead wire at the same time.Due to different voltage levels, the insulation sleeve has pure porcelain sleeves, oil-filled sleeves and capacitive sleeves.Pure porcelain bushing is mostly used for transformers of 10kV and below. It is to wear a conductive copper rod in the porcelain bushing, and the inside of the porcelain bushing is air insulated.The oil-filled bushing is mainly used in the 35kV class transformer. It is oil-filled in the porcelain bushing. A conductive copper pole is worn in the porcelain bushing.Capacitive bushing is composed of main insulating capacitor core, outer insulating upper and lower porcelain parts, connecting sleeve, oil pillow, spring assembly, base, equalizing ball, measuring terminal, wiring terminal, rubber washer, insulating oil, etc.It is used in high voltage transformers above 100kV.

Keywords

Category

Wafer Type Bushing

Contact us
Leave Message

Product description

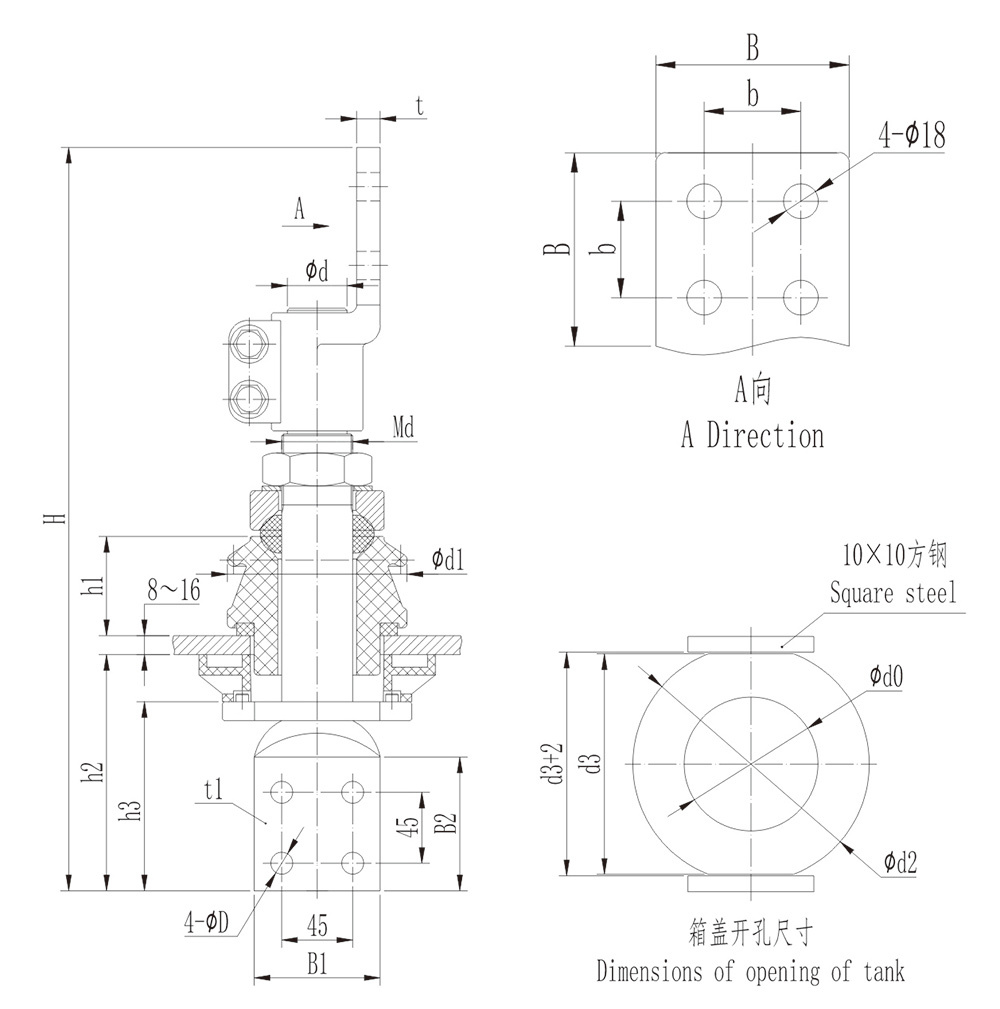

Wafer type bushing outline dimensions(1~3kV/1600~4000A Plate connected bushing)



Sequence Number Code Model Dimensions Opening Aarcing distance Creep distance Shield Weight
（kg）
H h2 h3 Md Φd d1 d2 d3 B b t B1×B2 D t1 d0 h1
1 AM.AAH.002 BF-1/1600 467 150 120 M36×2 33 103 130 110 100 50 14 80×85 14 12 70 63 75 1 single umbrella 10
2 AM.AAJ.003 BF-1/2000 467 150 120 M42×2 38 103 130 110 100 50 15 80×85 14 14 70 63 75 1 single umbrella 11
3 AM.AAK.002 BF-1/2500 472 150 120 M45×2 38 114 150 140 100 50 15 80×85 14 15 85 63 80 1 single umbrella 11
4 AM.AAL.002 BF-1/3150 472 150 120 M48×2 42 114 150 140 100 50 16 80×85 14 15 85 63 80 1 single umbrella 12.5
5 AM.AAM.002 BF-1/4000 542 175 145 M52×2 48 130 170 150 120 60 18 100×100 18 16 95 65 85 1 single umbrella 13
6 AM.ABH.802 BFJ-3/1600 517 180 120 M36×2 33 113 130 110 100 50 14 80×85 14 12 70 83 125 2 single umbrella 12.5
7 AM.ABJ.803 BFJ-3/2000 517 180 120 M42×2 38 113 130 110 100 50 15 80×85 14 14 70 83 125 2 single umbrella 13.5
8 AM.ABK.802 BFJ-3/2500 522 180 120 M45×2 38 124 150 140 100 50 15 80×85 14 15 85 83 130 2 single umbrella 13.5
9 AM.ABL.802 BFJ-3/3150 522 180 120 M48×2 42 124 150 140 100 50 16 80×85 14 15 85 83 130 2 single umbrella 15
10 AM.ABM.802 BFJ-3/4000 592 205 145 M52×2 48 140 170 150 120 60 18 100×100 18 16 95 85 140 2 single umbrella 16



Note: adding "T" after the code indicates that it is equipped with sheath. Other specifications can be customized according to customer requirements.
