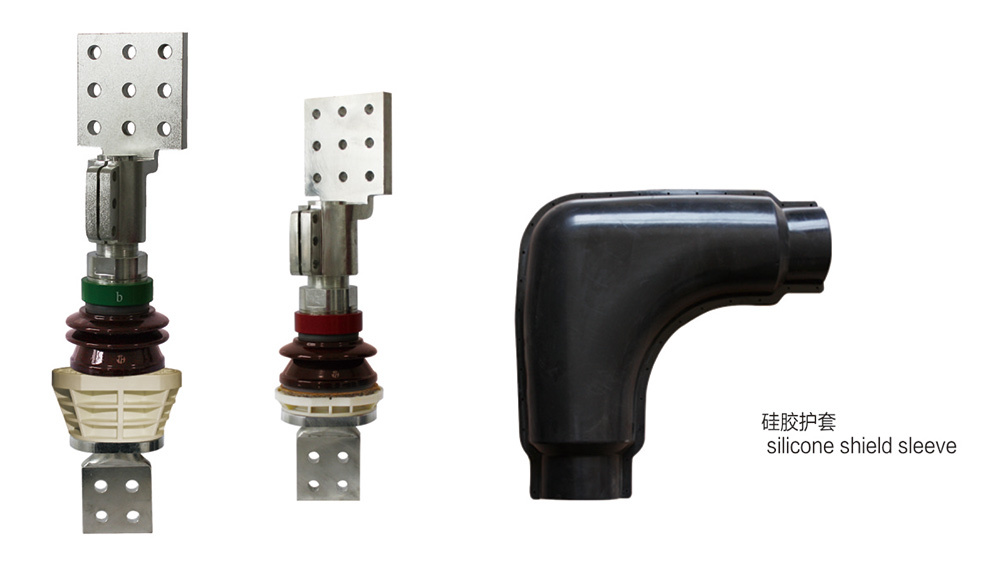

Wafer type bushing (1~3kV/5000~7000A Plate connected bushing)

The transformer sleeve is the main insulating device outside the transformer box. The lead wire of the transformer winding must pass through the insulating sleeve to insulate the lead wire between the lead wire and the lead wire between the transformer shell, and to fix the lead wire at the same time.Due to different voltage levels, the insulation sleeve has pure porcelain sleeves, oil-filled sleeves and capacitive sleeves.Pure porcelain bushing is mostly used for transformers of 10kV and below. It is to wear a conductive copper rod in the porcelain bushing, and the inside of the porcelain bushing is air insulated.The oil-filled bushing is mainly used in the 35kV class transformer. It is oil-filled in the porcelain bushing. A conductive copper pole is worn in the porcelain bushing.Capacitive bushing is composed of main insulating capacitor core, outer insulating upper and lower porcelain parts, connecting sleeve, oil pillow, spring assembly, base, equalizing ball, measuring terminal, wiring terminal, rubber washer, insulating oil, etc.It is used in high voltage transformers above 100kV.

Keywords

Category

Wafer Type Bushing

Contact us
Leave Message

Product description

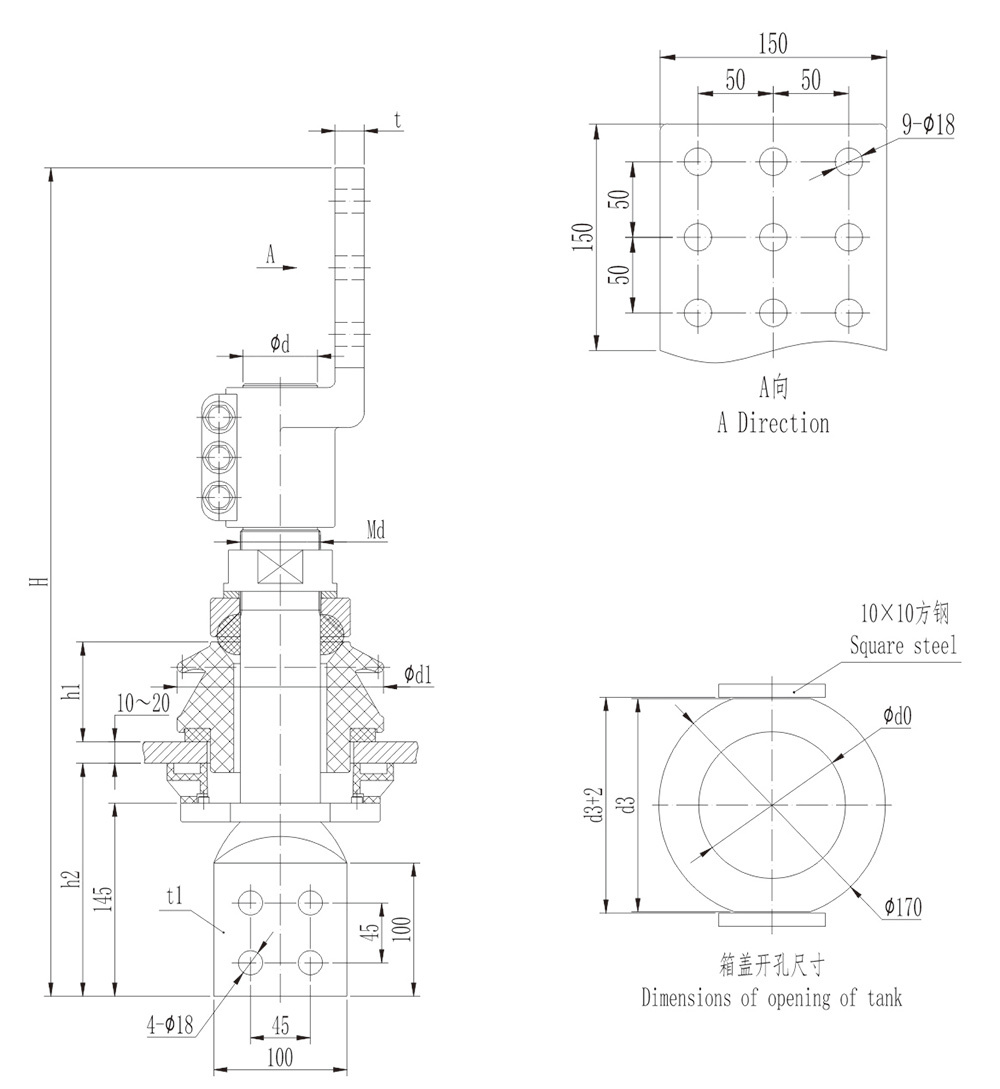

Wafer type bushing outline dimensions(1~3kV/5000~7000A Plate connected bushing)



Sequence Number Code Model Dimensions Opening Arcing distance Creep distance Shield Weight
（kg）
H h2 Md Φd d1 d3 t t1 d0 h1
1 AM.AAN.002 BF-1/5000 602 175 M56×2 52 130 150 20 18 95 65 85 1 single umbrella 20
2 AM.AAP.002 BF-1/6300 622 175 M60×2 56 155 160 22 22 110 75 110 1 single umbrella 23
3 AM.AAQ.002 BF-1/7000 627 175 M65×2 60 155 160 24 26 110 75 110 1 single umbrella 25
4 AM.ABN.802 BFJ-3/5000 652 205 M56×2 52 140 150 20 18 95 85 140 2 single umbrella 23
5 AM.ABP.802 BFJ-3/6300 672 205 M60×2 56 165 160 22 22 110 95 180 2 single umbrella 26
6 AM.ABQ.802 BFJ-3/7000 677 205 M65×2 60 165 160 24 26 110 95 180 2 single umbrella 28



Note: adding "T" after the code indicates that it is equipped with sheath. Other specifications can be customized according to customer requirements.
