Rod type bushing (6~20kV/315~630A screw connected bushing)

The transformer sleeve is the main insulating device outside the transformer box. The lead wire of the transformer winding must pass through the insulating sleeve to insulate the lead wire between the lead wire and the lead wire between the transformer shell, and to fix the lead wire at the same time.Due to different voltage levels, the insulation sleeve has pure porcelain sleeves, oil-filled sleeves and capacitive sleeves.Pure porcelain bushing is mostly used for transformers of 10kV and below. It is to wear a conductive copper rod in the porcelain bushing, and the inside of the porcelain bushing is air insulated.The oil-filled bushing is mainly used in the 35kV class transformer. It is oil-filled in the porcelain bushing. A conductive copper pole is worn in the porcelain bushing.Capacitive bushing is composed of main insulating capacitor core, outer insulating upper and lower porcelain parts, connecting sleeve, oil pillow, spring assembly, base, equalizing ball, measuring terminal, wiring terminal, rubber washer, insulating oil, etc.It is used in high voltage transformers above 100kV.

Keywords

Category

Rod Type Bushing

Contact us
Leave Message

Product description

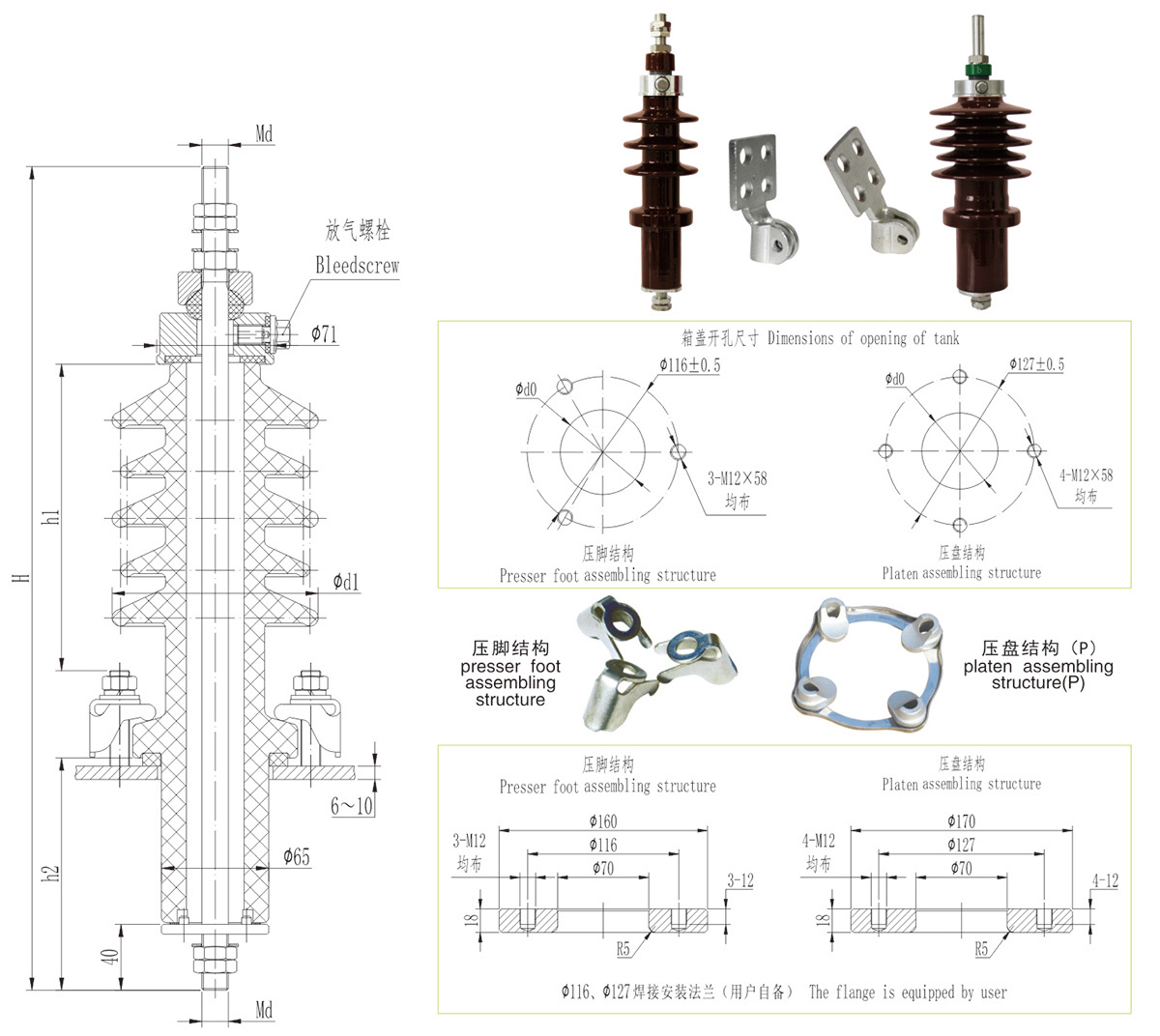

Rod type bushing outline dimensions(6~20kV/315~630A screw connected bushing)



Sequence Number Code Model Dimensions Opening Arcing distance Creep distance Shield Weight
（kg）
H h2 Md d1 d0 h1
1 AM.CCA.001 BD-6/315 350 101 M12×1.75 115 70 86 230 2 single umbrella 2.8
2 AM.CCB.001 BD-6/400 350 101 M16×2 115 70 86 230 2 single umbrella 3
3 AM.CCD.001 BD-6/630 350 101 M20×2.5 115 70 86 230 2 single umbrella 3.2
4 AM.CDA.001 BD-10/315 460 141 M12×1.75 115 70 146 320 3 single umbrella 3.4
5 AM.CDB.001 BD-10/400 460 141 M16×2 115 70 146 320 3 single umbrella 3.8
6 AM.CDD.001 BD-10/630 460 141 M20×2.5 115 70 146 320 3 single umbrella 4.4
7 AM.CFA.001 BD-20/315 500 141 M12×1.75 115 70 186 360 3 single umbrella 3.7
8 AM.CFB.001 BD-20/400 500 141 M16×2 115 70 186 360 3 single umbrella 4
9 AM.CFD.001 BD-20/630 500 141 M20×2.5 115 70 186 360 3 single umbrella 4.7
10 AM.CFA.002 BDW-20/315 500 141 M12×1.75 125 70 186 420 3 big 2 small 4.4
11 AM.CFB.002 BDW-20/400 500 141 M16×2 125 70 186 420 3 big 2 small 4.7
12 AM.CFD.002 BDW-20/630 500 141 M20×2.5 125 70 186 420 3 big 2 small 5.7
13 AM.CFA.003 BDW-20/315 550 141 M12×1.75 135 70 236 610 3 big 3 small 5
14 AM.CFB.003 BDW-20/400 550 141 M16×2 135 70 236 610 3 big 3 small 5.8
15 AM.CFD.003 BDW-20/630 550 141 M20×2.5 135 70 236 610 3 big 3 small 6.7



Note: when using the pressure plate structure, add "P" after the model, and add "H" after the model when using butterfly type tablet

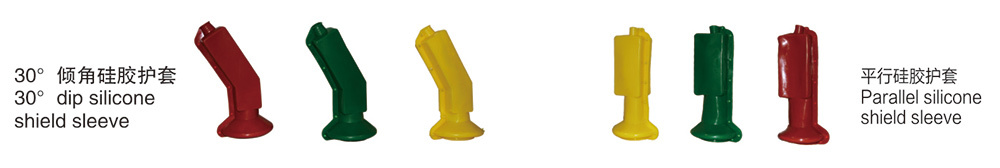

After the code, add "DZ" to represent the terminal, and "t" to represent the sheath. In addition, other specifications can be customized according to customer requirements.
