Rod type bushing (10~20kV/2000~5000A plate connected bushing)

The transformer sleeve is the main insulating device outside the transformer box. The lead wire of the transformer winding must pass through the insulating sleeve to insulate the lead wire between the lead wire and the lead wire between the transformer shell, and to fix the lead wire at the same time.Due to different voltage levels, the insulation sleeve has pure porcelain sleeves, oil-filled sleeves and capacitive sleeves.Pure porcelain bushing is mostly used for transformers of 10kV and below. It is to wear a conductive copper rod in the porcelain bushing, and the inside of the porcelain bushing is air insulated.The oil-filled bushing is mainly used in the 35kV class transformer. It is oil-filled in the porcelain bushing. A conductive copper pole is worn in the porcelain bushing.Capacitive bushing is composed of main insulating capacitor core, outer insulating upper and lower porcelain parts, connecting sleeve, oil pillow, spring assembly, base, equalizing ball, measuring terminal, wiring terminal, rubber washer, insulating oil, etc.It is used in high voltage transformers above 100kV.

Keywords

Category

Rod Type Bushing

Contact us
Leave Message

Product description

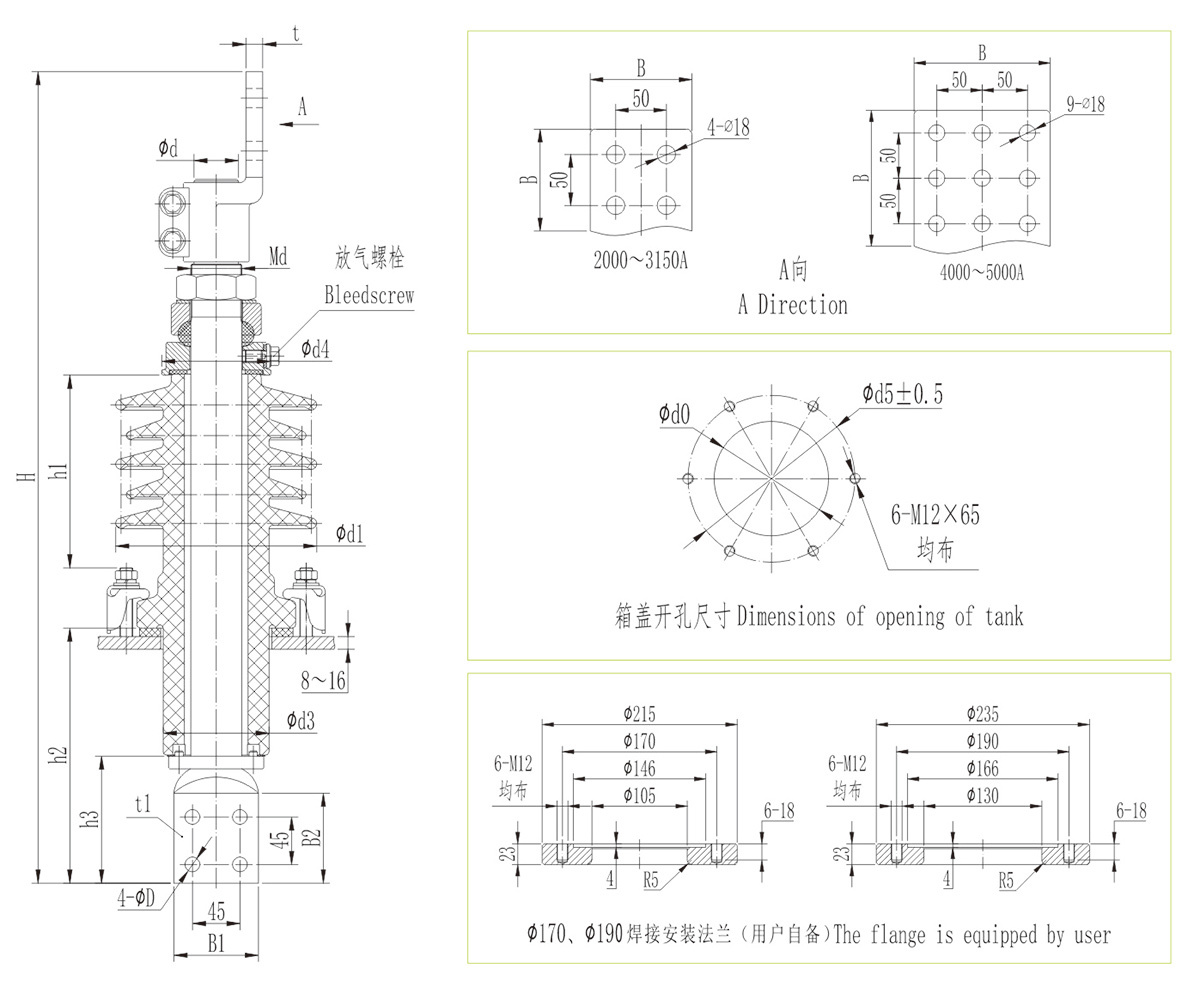

Rod type bushing outline dimensions(10~20kV/2000~5000A plate connected bushing)



Sequence Number Code Model Dimensions Opening Arcing distance Creep distance Shield Weight
（kg）
H h2 h3 Md Φd d1 d3 d4 d5 B t B1×B2 D t1 d0 h1
1 AM.CDJ.001 BD-10/2000 727 241 120 M42×2 38 160 100 103 170 100 15 80×85 14 14 105 142 320 3 single umbrella 17
2 AM.CDL.001 BD-10/3150 727 241 120 M48×2 42 160 100 103 170 100 16 80×85 14 15 105 142 320 3 single umbrella 20
3 AM.CDM.001 BD-10/4000 857 266 145 M52×2 48 180 120 128 190 150 18 100×100 18 16 130 143 320 3 single umbrella 27
4 AM.CDN.001 BD-10/5000 857 266 145 M56×2 52 180 120 128 190 150 20 100×100 18 18 130 143 320 3 single umbrella 29
5 AM.CFJ.001 BD-20/2000 767 241 120 M42×2 38 160 100 103 170 100 15 80×85 14 14 105 182 380 3 single umbrella 19
6 AM.CFL.001 BD-20/3150 767 241 120 M48×2 42 160 100 103 170 100 16 80×85 14 15 105 182 380 3 single umbrella 21
7 AM.CFM.001 BD-20/4000 897 266 145 M52×2 48 180 120 128 190 150 18 100×100 18 16 130 183 380 3 single umbrella 33
8 AM.CFN.001 BD-20/5000 897 266 145 M56×2 52 180 120 128 190 150 20 100×100 18 18 130 183 380 3 single umbrella 35
9 AM.CFJ.002 BDW-20/2000 767 241 120 M42×2 38 190 100 103 170 100 15 80×85 14 14 105 182 530 3 big 2 small 21
10 AM.CFL.002 BDW-20/3150 767 241 120 M48×2 42 190 100 103 170 100 16 80×85 14 15 105 182 530 3 big 2 small 23
11 AM.CFM.002 BDW-20/4000 897 266 145 M52×2 48 200 120 128 190 150 18 100×100 18 16 130 183 530 3 big 2 small 35
12 AM.CFN.002 BDW-20/5000 897 266 145 M56×2 52 200 120 128 190 150 20 100×100 18 18 130 183 530 3 big 2 small 37
13 AM.CFJ.003 BDW-20/2000 817 241 120 M42×2 38 190 100 103 170 100 15 80×85 14 14 105 232 680 3 big 3 small 23
14 AM.CFL.003 BDW-20/3150 817 241 120 M48×2 42 190 100 103 170 100 16 80×85 14 15 105 232 680 3 big 3 small 25
15 AM.CFM.003 BDW-20/4000 947 266 145 M52×2 48 220 120 128 190 150 18 100×100 18 16 130 233 720 3 big 3 small 36
16 AM.CFN.003 BDW-20/5000 947 266 145 M56×2 52 220 120 128 190 150 20 100×100 18 18 130 233 720 3 big 3 small 38



Note: when selecting the pressure plate structure, add "P" after the model and "t" after the code to represent the sheath. In addition, other specifications can be customized according to customer requirements.
