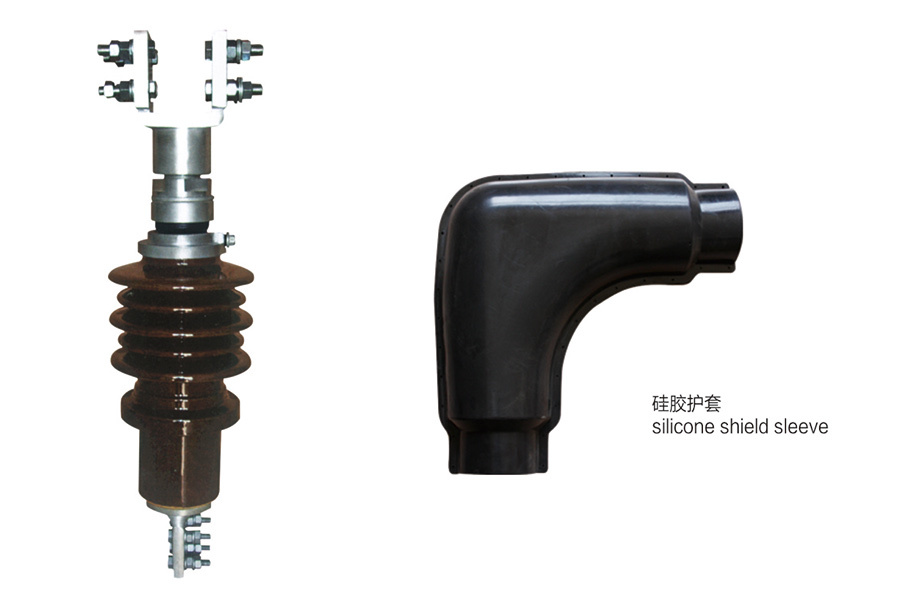

Rod type bushing (20kV/6300~8000A plate connected bushing)

The transformer sleeve is the main insulating device outside the transformer box. The lead wire of the transformer winding must pass through the insulating sleeve to insulate the lead wire between the lead wire and the lead wire between the transformer shell, and to fix the lead wire at the same time.Due to different voltage levels, the insulation sleeve has pure porcelain sleeves, oil-filled sleeves and capacitive sleeves.Pure porcelain bushing is mostly used for transformers of 10kV and below. It is to wear a conductive copper rod in the porcelain bushing, and the inside of the porcelain bushing is air insulated.The oil-filled bushing is mainly used in the 35kV class transformer. It is oil-filled in the porcelain bushing. A conductive copper pole is worn in the porcelain bushing.Capacitive bushing is composed of main insulating capacitor core, outer insulating upper and lower porcelain parts, connecting sleeve, oil pillow, spring assembly, base, equalizing ball, measuring terminal, wiring terminal, rubber washer, insulating oil, etc.It is used in high voltage transformers above 100kV.


Keywords



Product description


Rod type bushing outline dimensions(20kV/6300~8000A plate connected bushing)



Sequence Number Code Model Dimensions Opening Arcing distance Creep distance Shield Weight
(kg)
H h2 h3 Md Φd d1 d2 t t1 d0 h1
1 AM.CFP.002 BDW-20/6300 919 266 145 M60×2 56 250 120 16 22 150 233 780 3 big 3 small 46
2 AM.CFQ.003 BDW-20/7000 919 266 145 M65×2 60 250 120 18 26 150 233 780 3 big 3 small 49
3 AM.CFQ.004 BDW-20/8000 919 266 145 M70×2 65 250 120 20 30 150 233 780 3 big 3 small 53



Note: when selecting the pressure plate structure, add "P" after the model and "t" after the code to represent the sheath. In addition, other specifications can be customized according to customer requirements.
