Aluminum flanged porcelain bushing (1kV/315~1250A screw connected bushing)

The transformer sleeve is the main insulating device outside the transformer box. The lead wire of the transformer winding must pass through the insulating sleeve to insulate the lead wire between the lead wire and the lead wire between the transformer shell, and to fix the lead wire at the same time.Due to different voltage levels, the insulation sleeve has pure porcelain sleeves, oil-filled sleeves and capacitive sleeves.Pure porcelain bushing is mostly used for transformers of 10kV and below. It is to wear a conductive copper rod in the porcelain bushing, and the inside of the porcelain bushing is air insulated.The oil-filled bushing is mainly used in the 35kV class transformer. It is oil-filled in the porcelain bushing. A conductive copper pole is worn in the porcelain bushing.Capacitive bushing is composed of main insulating capacitor core, outer insulating upper and lower porcelain parts, connecting sleeve, oil pillow, spring assembly, base, equalizing ball, measuring terminal, wiring terminal, rubber washer, insulating oil, etc.It is used in high voltage transformers above 100kV.

Keywords

Category

Aluminum Flanged Porcelain Bushing

Contact us
Leave Message

Product description

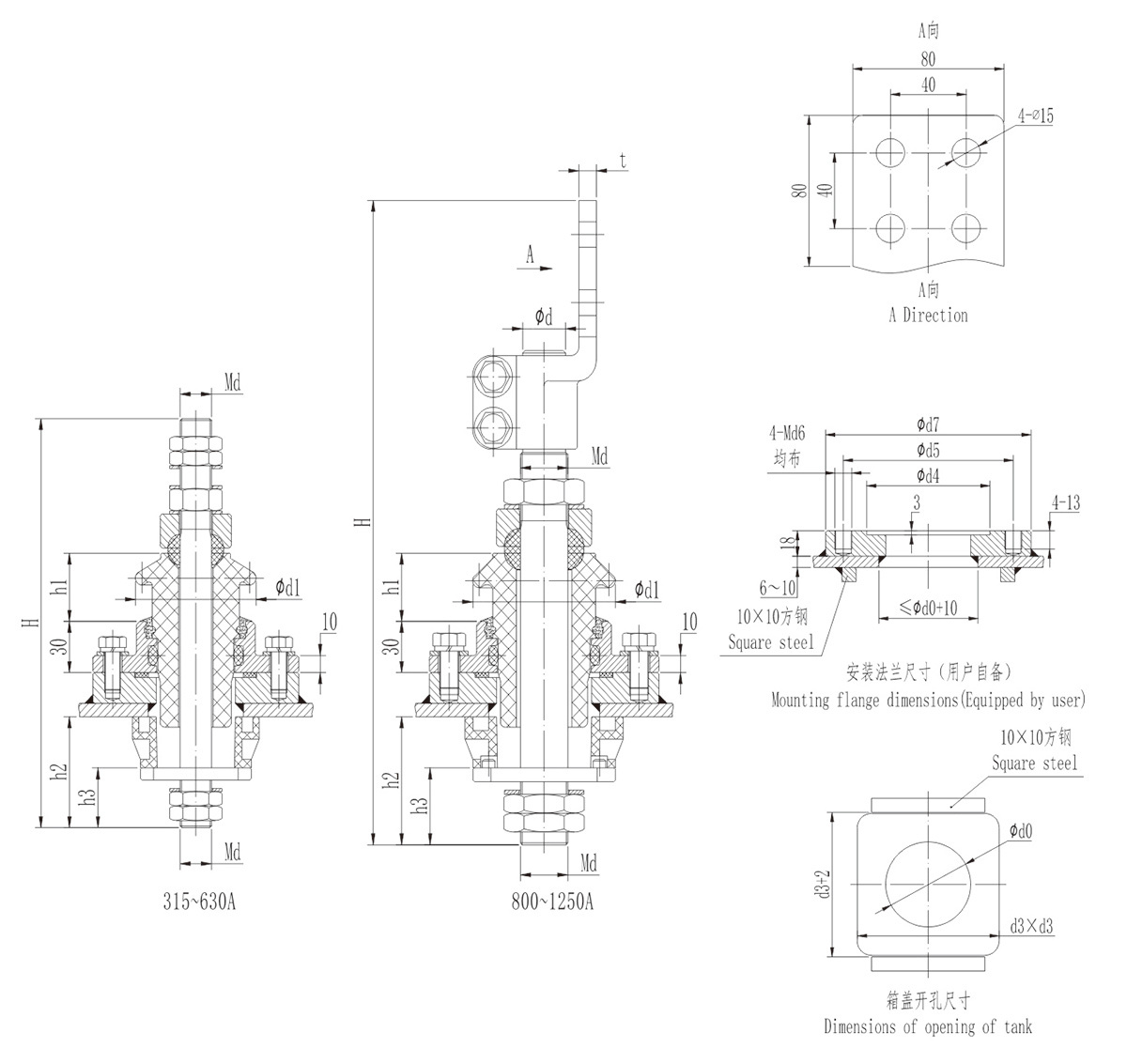

Aluminum flanged porcelain Bushing outline dimensions(1kV/315~1250A screw connected bushing)



Sequence Number Code Model Dimensions Opening Arcing distance Creep distance Shield Weight
（kg）
H h2 h3 Md Φd d1 d3 d4 d5 d6 d7 t d0 h1
1 AM.LAA.001 FBF-1/315 220 60 30 M12×1.75 —— 56 55 56 85 10 110 —— 30 40 60 1 single umbrella 1.1
2 AM.LAB.001 FBF-1/400 240 65 35 M16×2 —— 76 80 77 105 10 130 —— 50 40 60 1 single umbrella 1.9
3 AM.LAD.001 FBF-1/630 240 65 35 M20×2.5 —— 76 80 77 105 10 130 —— 50 40 60 1 single umbrella 2.2
4 AM.LAE.001 FBF-1/800 368 75 45 M24×1.5 —— 90 100 87 120 12 145 10 60 40 65 1 single umbrella 4.5
5 AM.LAF.001 FBF-1/1000 378 75 45 M30×1.5 27 90 100 87 120 12 145 11 60 40 60 1 single umbrella 5.5
6 AM.LAG.001 FBF-1/1250 378 75 45 M33×1.5 30 90 100 87 120 12 145 12 60 40 60 1 single umbrella 6

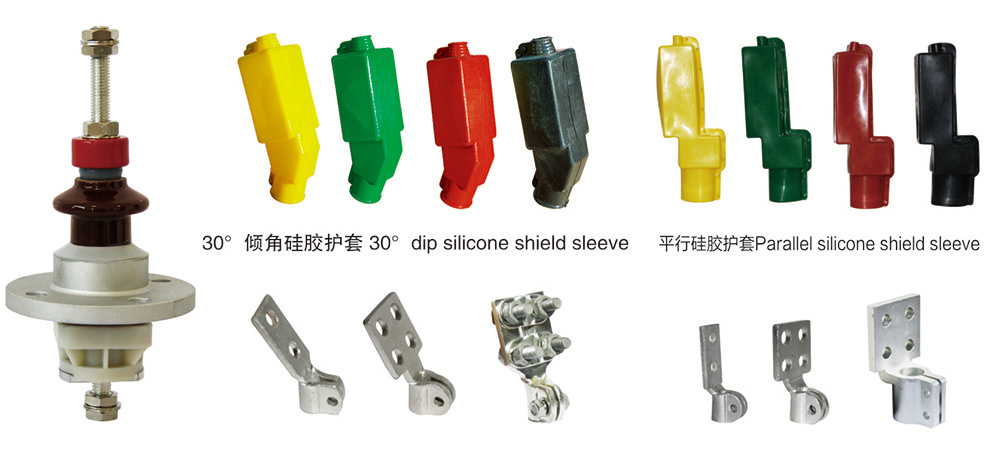

Note: add "DZ" after the code to represent the terminal, and "t" to represent the sheath. Other specifications can be customized
