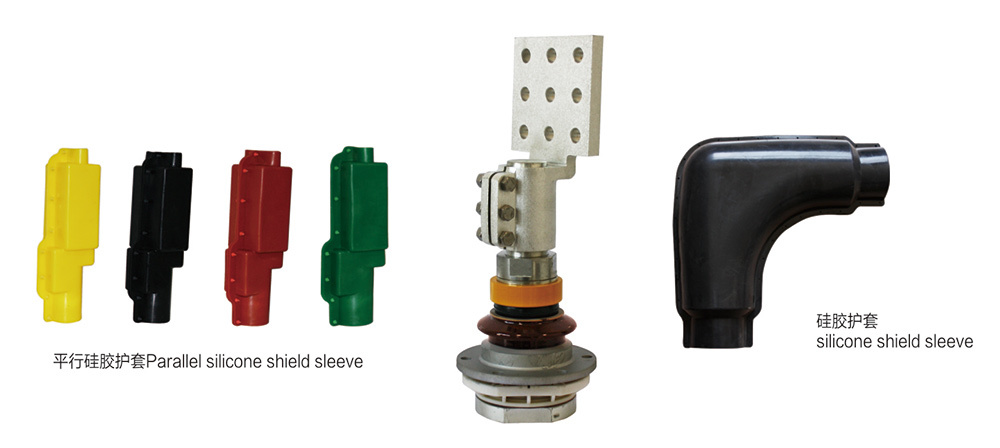

Aluminum flanged porcelain bushing (1kV/1600~7000A T type connected bushing)

The transformer sleeve is the main insulating device outside the transformer box. The lead wire of the transformer winding must pass through the insulating sleeve to insulate the lead wire between the lead wire and the lead wire between the transformer shell, and to fix the lead wire at the same time.Due to different voltage levels, the insulation sleeve has pure porcelain sleeves, oil-filled sleeves and capacitive sleeves.Pure porcelain bushing is mostly used for transformers of 10kV and below. It is to wear a conductive copper rod in the porcelain bushing, and the inside of the porcelain bushing is air insulated.The oil-filled bushing is mainly used in the 35kV class transformer. It is oil-filled in the porcelain bushing. A conductive copper pole is worn in the porcelain bushing.Capacitive bushing is composed of main insulating capacitor core, outer insulating upper and lower porcelain parts, connecting sleeve, oil pillow, spring assembly, base, equalizing ball, measuring terminal, wiring terminal, rubber washer, insulating oil, etc.It is used in high voltage transformers above 100kV.

Keywords

Category

Aluminum Flanged Porcelain Bushing

Contact us
Leave Message

Product description

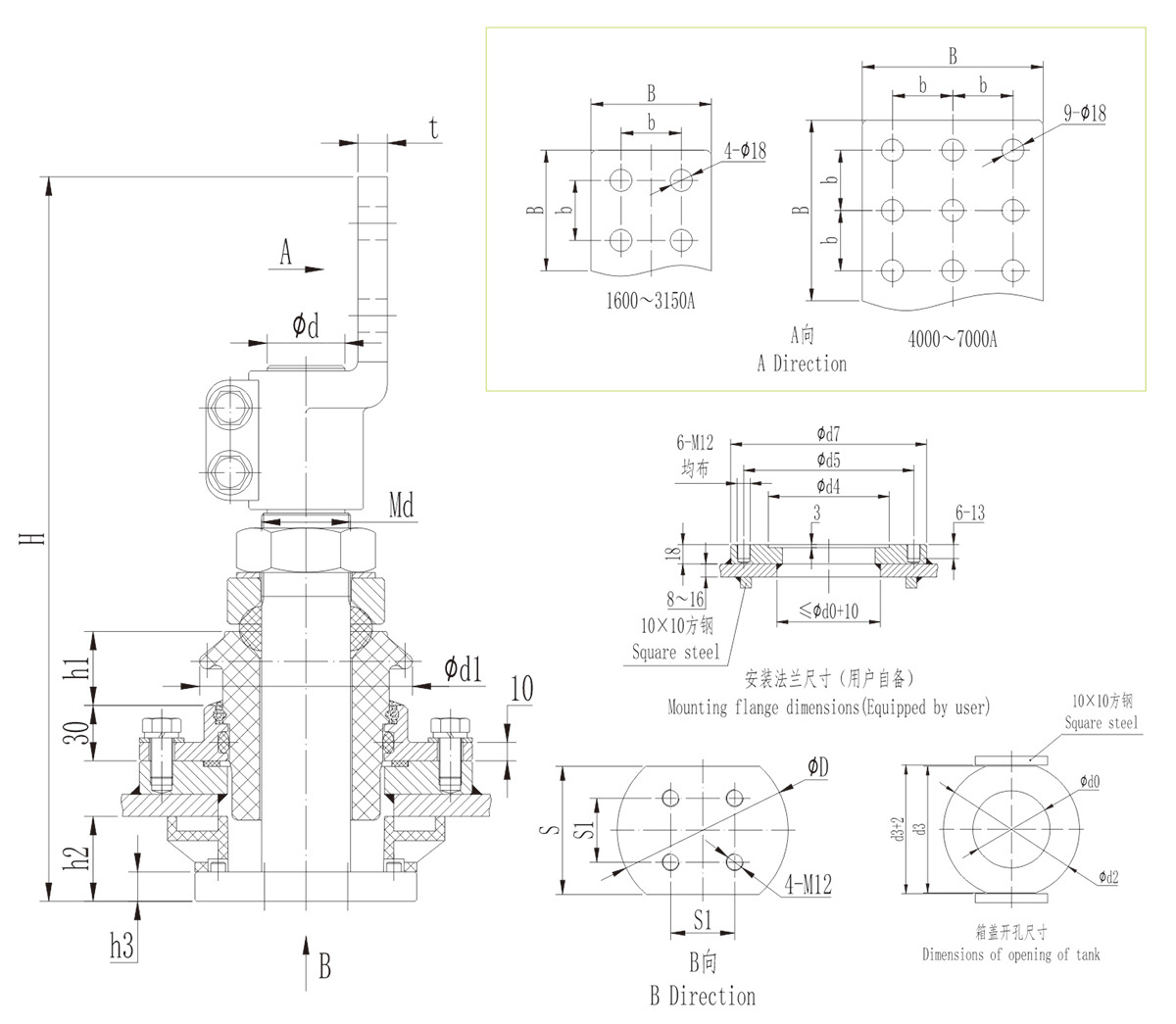

Aluminum flanged porcelain Bushing outline dimensions(1kV/1600~7000A T type connected bushing)



Sequence Number Code Model Dimensions Opening Arcing distance Creep distance Shield Weight
（kg）
H h2 h3 Md Φd d1 d2 d3 d4 d5 d7 B b t D S S1 d0 h1
1 AM.LAH.001 FBF-1/1600 387 46 16 M36×2 33 105 130 110 94 156 180 100 50 14 100 90 45 70 40 65 1 single umbrella 8.7
2 AM.LAJ.001 FBF-1/2000 387 46 16 M42×2 38 105 130 110 94 156 180 100 50 15 100 90 45 70 40 65 1 single umbrella 10
3 AM.LAJ.002 FBF-1/2000 392 46 16 M42×2 38 115 150 140 111 156 180 100 50 15 120 90 45 85 40 60 1 single umbrella 10.5
4 AM.LAL.001 FBF-1/3150 392 46 16 M48×2 42 115 150 140 111 156 180 100 50 16 120 90 45 85 40 60 1 single umbrella 12
5 AM.LAM.001 FBF-1/4000 442 50 20 M52×2 48 130 170 150 121 160 185 120 60 18 135 120 55 95 40 70 1 single umbrella 15.5
6 AM.LAN.001 FBF-1/5000 502 50 20 M56×2 52 130 170 150 121 160 185 150 50 20 135 120 55 95 40 70 1 single umbrella 20.5
7 AM.LAP.001 FBF-1/6300 512 52 22 M60×2 56 155 170 160 129 170 195 150 50 22 150 130 62 105 40 80 1 single umbrella 23.5
8 AM.LAQ.001 FBF-1/7000 517 52 22 M65×2 60 155 170 160 129 170 195 150 50 24 150 130 62 105 40 80 1 single umbrella 25.5



Note: "T" after the code indicates the sheath. Other specifications can be customized according to customer requirements.
