Aluminum flanged porcelain bushing (35kV/100~630A draw-lead type bushing)

The transformer sleeve is the main insulating device outside the transformer box. The lead wire of the transformer winding must pass through the insulating sleeve to insulate the lead wire between the lead wire and the lead wire between the transformer shell, and to fix the lead wire at the same time.Due to different voltage levels, the insulation sleeve has pure porcelain sleeves, oil-filled sleeves and capacitive sleeves.Pure porcelain bushing is mostly used for transformers of 10kV and below. It is to wear a conductive copper rod in the porcelain bushing, and the inside of the porcelain bushing is air insulated.The oil-filled bushing is mainly used in the 35kV class transformer. It is oil-filled in the porcelain bushing. A conductive copper pole is worn in the porcelain bushing.Capacitive bushing is composed of main insulating capacitor core, outer insulating upper and lower porcelain parts, connecting sleeve, oil pillow, spring assembly, base, equalizing ball, measuring terminal, wiring terminal, rubber washer, insulating oil, etc.It is used in high voltage transformers above 100kV.

Keywords

Category

Aluminum Flanged Porcelain Bushing

Contact us
Leave Message

Product description

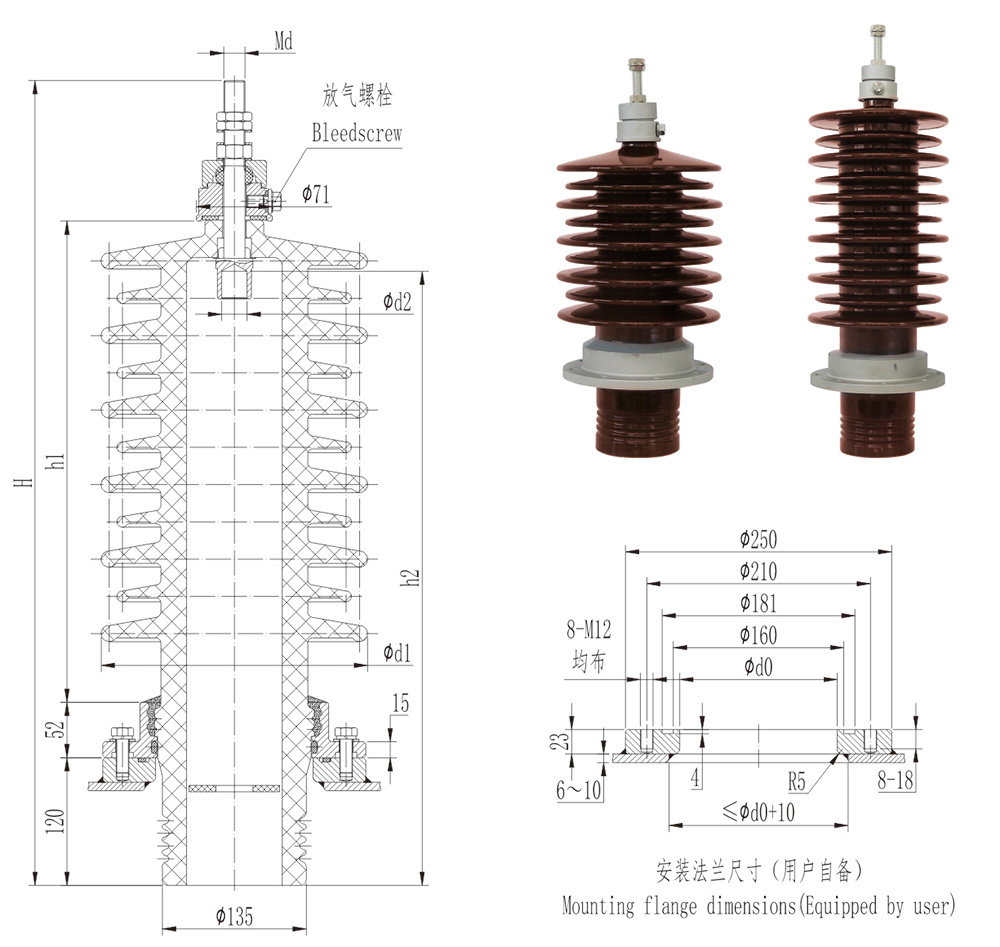

Aluminum flanged porcelain Bushing outline dimensions(35kV/100~630A draw-lead type bushing)



Sequence Number Code Model Dimensions Opening Arcing distance Creep distance Shield Weight
（kg）
H h2 Md d1 d2 d0 h1
127 AM.LHA.007 FBJLW-35/100 591 442 M16×2 265 12 148 317 1160 5 big 4 small 26.1
128 AM.LHA.008 FBJLW-35/100 656 507 M16×2 265 12 148 382 1420 6 big 5 small 30.1
129 AM.LHA.009 FBJLW-35/100 756 577 M16×2 250 12 148 452 1330 6 big 5 small 28.8
130 AM.LHA.010 FBJLW-35/250 756 577 M16×2 250 16 148 452 1330 6 big 5 small 28.8
143 AM.LHB.005 FBJLW-35/400 756 577 M16×2 250 20 148 452 1330 6 big 5 small 28.8
152 AM.LHD.005 FBJLW-35/630 756 577 M20×2.5 250 24 148 452 1330 6 big 5 small 29
132 AM.LHA.012 FBJLW-35/100 841 662 M16×2 250 12 148 537 1570 7 big 6 small 32.8
133 AM.LHA.013 FBJLW-35/250 841 662 M16×2 250 16 148 537 1570 7 big 6 small 32.8
145 AM.LHB.007 FBJLW-35/400 841 662 M16×2 250 20 148 537 1570 7 big 6 small 32.8
154 AM.LHD.007 FBJLW-35/630 841 662 M20×2.5 250 24 148 537 1570 7 big 6 small 33



Note: add "DZ" after the code to represent the terminal, and "t" to represent the sheath. Other specifications can be customized according to customer requirements.
