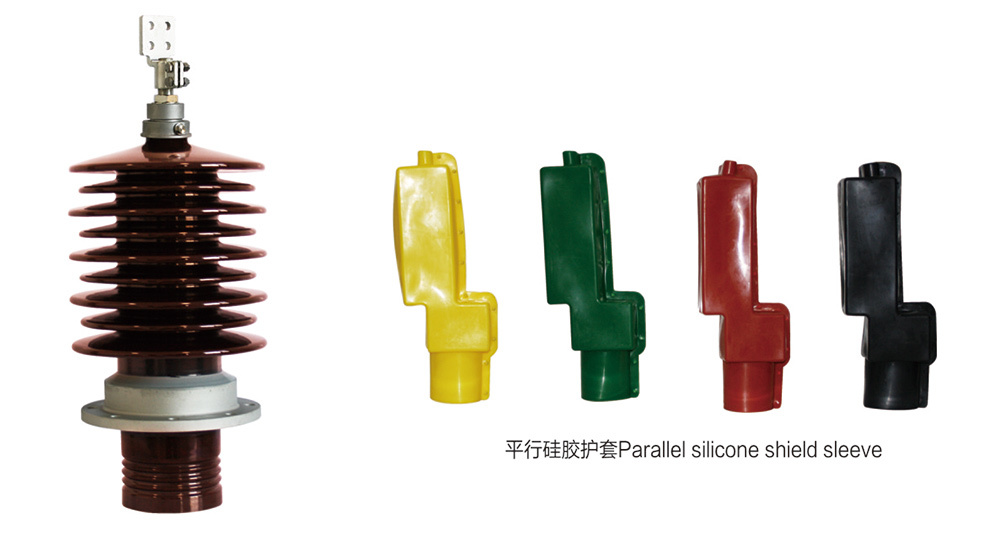

Aluminum flanged porcelain bushing (35kV/800~1250A draw-lead type bushing)

The transformer sleeve is the main insulating device outside the transformer box. The lead wire of the transformer winding must pass through the insulating sleeve to insulate the lead wire between the lead wire and the lead wire between the transformer shell, and to fix the lead wire at the same time.Due to different voltage levels, the insulation sleeve has pure porcelain sleeves, oil-filled sleeves and capacitive sleeves.Pure porcelain bushing is mostly used for transformers of 10kV and below. It is to wear a conductive copper rod in the porcelain bushing, and the inside of the porcelain bushing is air insulated.The oil-filled bushing is mainly used in the 35kV class transformer. It is oil-filled in the porcelain bushing. A conductive copper pole is worn in the porcelain bushing.Capacitive bushing is composed of main insulating capacitor core, outer insulating upper and lower porcelain parts, connecting sleeve, oil pillow, spring assembly, base, equalizing ball, measuring terminal, wiring terminal, rubber washer, insulating oil, etc.It is used in high voltage transformers above 100kV.

Keywords

Category

Aluminum Flanged Porcelain Bushing

Contact us
Leave Message

Product description

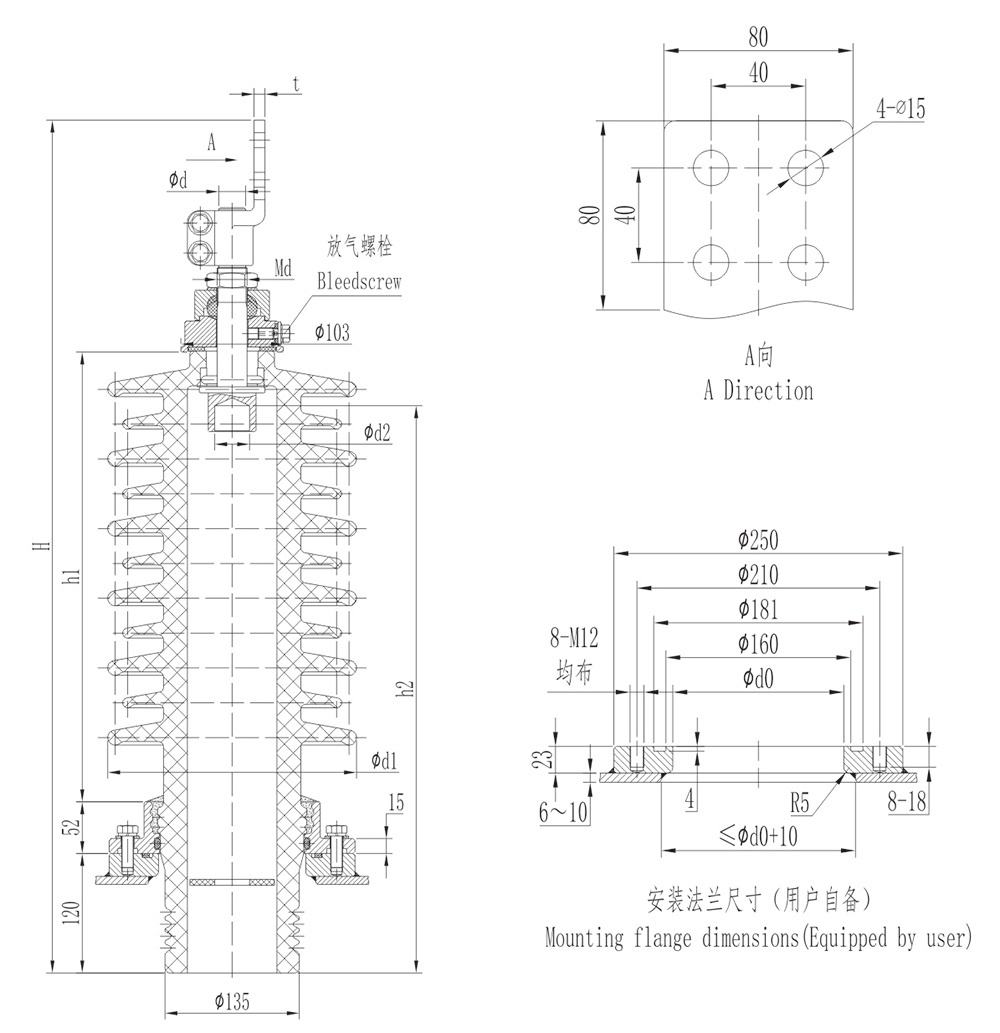

Aluminum flanged porcelain Bushing outline dimensions (35kV/800~1250A draw-lead type bushing)



Sequence Number Code Model Dimensions Opening Arcing distance Creep distance Shield Weight
（kg）
H h2 Md Φd d1 d2 t d0 h1
1 AM.LHE.001 FBJLW-35/800 852 570 M24×1.5 —— 250 30 10 148 452 1320 6 big 5 small 31.9
2 AM.LHF.001 FBJLW-35/1000 857 570 M30×1.5 27 250 35 11 148 452 1320 6 big 5 small 32.6
3 AM.LHG.001 FBJLW-35/1250 857 570 M33×1.5 30 250 40 12 148 452 1320 6 big 5 small 33
4 AM.LHE.003 FBJLW-35/800 937 655 M24×1.5 —— 250 30 10 148 537 1560 7 big 6 small 25.9
5 AM.LHF.003 FBJLW-35/1000 942 655 M30×1.5 27 250 35 11 148 537 1560 7 big 6 small 36.6
6 AM.LHG.003 FBJLW-35/1250 942 655 M33×1.5 30 250 40 12 148 537 1560 7 big 6 small 37



Note: "t" after the code indicates the sheath. Other specifications can be customized according to customer requirements.
