Aluminum flanged porcelain bushing (10~20kV/315~1250A Rod type bushing)

The transformer sleeve is the main insulating device outside the transformer box. The lead wire of the transformer winding must pass through the insulating sleeve to insulate the lead wire between the lead wire and the lead wire between the transformer shell, and to fix the lead wire at the same time.Due to different voltage levels, the insulation sleeve has pure porcelain sleeves, oil-filled sleeves and capacitive sleeves.Pure porcelain bushing is mostly used for transformers of 10kV and below. It is to wear a conductive copper rod in the porcelain bushing, and the inside of the porcelain bushing is air insulated.The oil-filled bushing is mainly used in the 35kV class transformer. It is oil-filled in the porcelain bushing. A conductive copper pole is worn in the porcelain bushing.Capacitive bushing is composed of main insulating capacitor core, outer insulating upper and lower porcelain parts, connecting sleeve, oil pillow, spring assembly, base, equalizing ball, measuring terminal, wiring terminal, rubber washer, insulating oil, etc.It is used in high voltage transformers above 100kV.

Keywords

Category

Aluminum Flanged Porcelain Bushing

Contact us
Leave Message

Product description

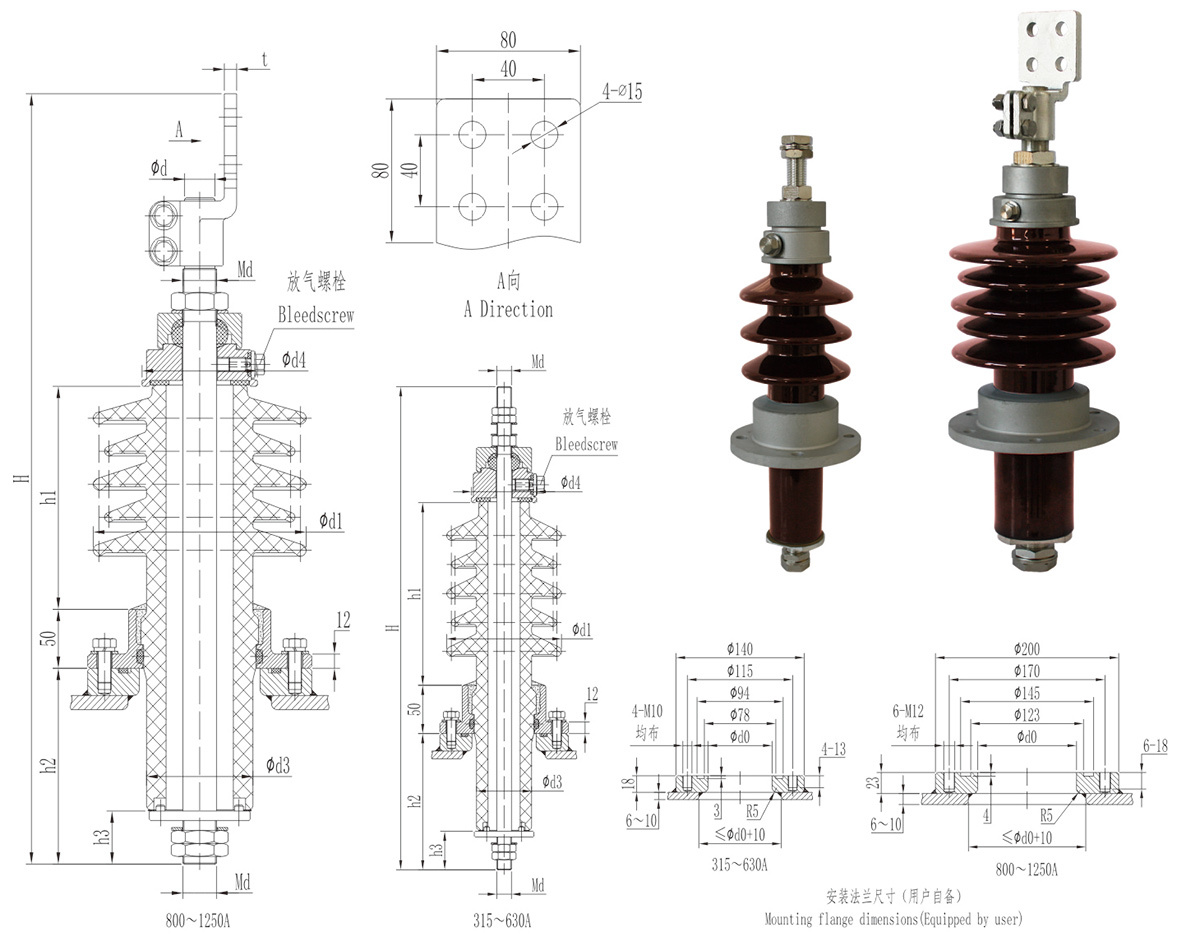

Aluminum flanged porcelain Bushing outline dimensions(10~ 20kV/315~1250A Rod type bushing)



Sequence Number Code Model Dimensions Opening Arcing distance Creep distance Shield Weight
（kg）
H h2 h3 Md Φd d1 d3 d4 t d0 h1
1 AM.LDA.005 FBD-10/315 460 141 40 M12×1.75 —— 115 60 71 —— 70 149 280 3 single umbrella 4.3
2 AM.LDB.001 FBD-10/400 460 141 40 M16×2 —— 115 60 71 —— 70 149 280 3 single umbrella 4.7
3 AM.LDD.001 FBD-10/630 460 141 40 M20×2.5 —— 115 60 71 —— 70 149 280 3 single umbrella 5.3
4 AM.LDE.001 FBD-10/800 603 166 45 M24×1.5 —— 160 95 103 10 108 149 310 3 single umbrella 11.3
5 AM.LDF.001 FBD-10/1000 613 166 45 M30×1.5 27 160 95 103 11 108 149 310 3 single umbrella 13
6 AM.LDG.001 FBD-10/1250 613 166 45 M33×1.5 30 160 95 103 12 108 149 310 3 single umbrella 13.7
7 AM.LFA.009 FBD-20/315 500 141 40 M12×1.75 —— 115 60 71 —— 70 189 320 3 single umbrella 4.7
8 AM.LFB.002 FBD-20/400 500 141 40 M16×2 —— 115 60 71 —— 70 189 320 3 single umbrella 5
9 AM.LFD.002 FBD-20/630 500 141 40 M20×2.5 —— 115 60 71 —— 70 189 320 3 single umbrella 5.5
10 AM.LFA.010 FBDW-20/315 500 141 40 M12×1.75 —— 125 60 71 —— 70 189 440 3 big 2 small 5.2
11 AM.LFB.003 FBDW-20/400 500 141 40 M16×2 —— 125 60 71 —— 70 189 440 3 big 2 small 5.6
12 AM.LFD.003 FBDW-20/630 500 141 40 M20×2.5 —— 125 60 71 —— 70 189 440 3 big 2 small 6.2
13 AM.LFE.001 FBDW-20/800 643 166 45 M24×1.5 —— 190 95 103 10 108 189 570 3 big 2 small 13.8
14 AM.LFF.001 FBDW-20/1000 653 166 45 M30×1.5 27 190 95 103 11 108 189 570 3 big 2 small 15.3
15 AM.LFG.001 FBDW-20/1250 653 166 45 M33×1.5 30 190 95 103 12 108 189 570 3 big 2 small 16.2



Note: add "DZ" after the code to represent the terminal, and "t" to represent the sheath. Other specifications can be customized according to customer requirements.
