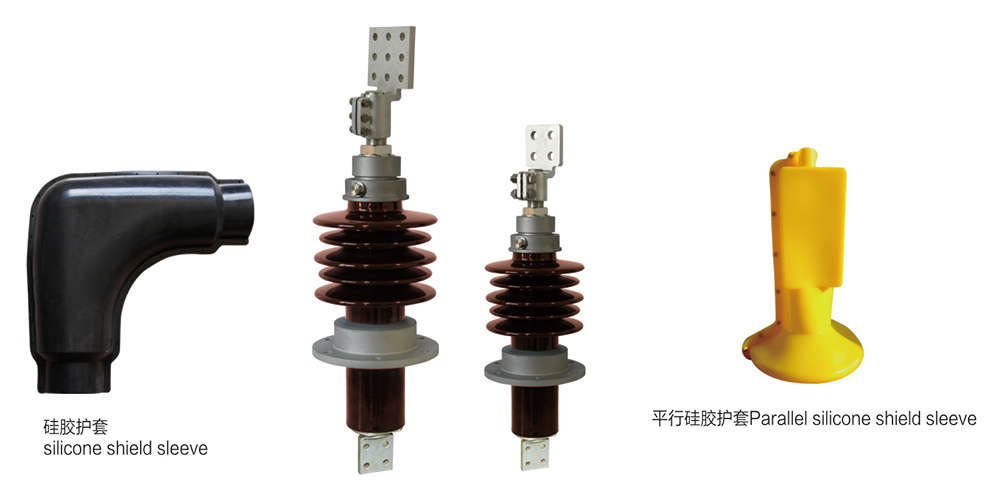

Aluminum flanged porcelain bushing (10~ 20kV/2000~5000A Rod type bushing)

The transformer sleeve is the main insulating device outside the transformer box. The lead wire of the transformer winding must pass through the insulating sleeve to insulate the lead wire between the lead wire and the lead wire between the transformer shell, and to fix the lead wire at the same time.Due to different voltage levels, the insulation sleeve has pure porcelain sleeves, oil-filled sleeves and capacitive sleeves.Pure porcelain bushing is mostly used for transformers of 10kV and below. It is to wear a conductive copper rod in the porcelain bushing, and the inside of the porcelain bushing is air insulated.The oil-filled bushing is mainly used in the 35kV class transformer. It is oil-filled in the porcelain bushing. A conductive copper pole is worn in the porcelain bushing.Capacitive bushing is composed of main insulating capacitor core, outer insulating upper and lower porcelain parts, connecting sleeve, oil pillow, spring assembly, base, equalizing ball, measuring terminal, wiring terminal, rubber washer, insulating oil, etc.It is used in high voltage transformers above 100kV.

Keywords

Category

Aluminum Flanged Porcelain Bushing

Contact us
Leave Message

Product description

Aluminum flanged porcelain bushing outline dimensions(10~ 20kV/2000~5000A Rod type bushing)



Sequence Number Code Model Dimensions Opening Arcing distance Creep distance Shield Weight
（kg）
H h2 h3 Md Φd d1 d3 d4 t B1×B2 D t1 d0 h1
1 AM.LDJ.001 FBD-10/2000 727 241 120 M42×2 38 160 95 103 15 80×85 14 14 108 149 310 3 single umbrella 18.6
2 AM.LDL.001 FBD-10/3150 727 241 120 M48×2 42 160 95 103 16 80×85 14 15 108 149 310 3 single umbrella 20.8
3 AM.LFJ.001 FBDW-20/2000 767 241 120 M42×2 38 190 95 103 15 80×85 14 14 108 189 570 3 big 2 small 21.4
4 AM.LFL.001 FBDW-20/3150 767 241 120 M48×2 42 190 95 103 16 80×85 14 15 108 189 570 3 big 2 small 23.8
5 AM.LFM.001 FBDW-20/4000 897 266 145 M52×2 48 200 115 128 18 100×100 18 16 130 191 510 3 big 2 small 32.5
6 AM.LFN.001 FBDW-20/5000 897 266 145 M56×2 52 200 115 128 20 100×100 18 18 130 191 510 3 big 2 small 35.5
7 AM.LFM.002 FBDW-20/4000 997 266 145 M52×2 48 200 115 128 18 100×100 18 16 130 291 770 4 big 4 small 37.5
8 AM.LFN.003 FBDW-20/5000 997 266 145 M56×2 52 200 115 128 20 100×100 18 18 130 291 770 4 big 4 small 41.5



Note: "T" after the code indicates the sheath. Other specifications can be customized according to customer requirements.
