Aluminum flanged porcelain bushing (35kV/315~1250A Rod type bushing)

The transformer sleeve is the main insulating device outside the transformer box. The lead wire of the transformer winding must pass through the insulating sleeve to insulate the lead wire between the lead wire and the lead wire between the transformer shell, and to fix the lead wire at the same time.Due to different voltage levels, the insulation sleeve has pure porcelain sleeves, oil-filled sleeves and capacitive sleeves.Pure porcelain bushing is mostly used for transformers of 10kV and below. It is to wear a conductive copper rod in the porcelain bushing, and the inside of the porcelain bushing is air insulated.The oil-filled bushing is mainly used in the 35kV class transformer. It is oil-filled in the porcelain bushing. A conductive copper pole is worn in the porcelain bushing.Capacitive bushing is composed of main insulating capacitor core, outer insulating upper and lower porcelain parts, connecting sleeve, oil pillow, spring assembly, base, equalizing ball, measuring terminal, wiring terminal, rubber washer, insulating oil, etc.It is used in high voltage transformers above 100kV.

Keywords

Category

Aluminum Flanged Porcelain Bushing

Contact us
Leave Message

Product description

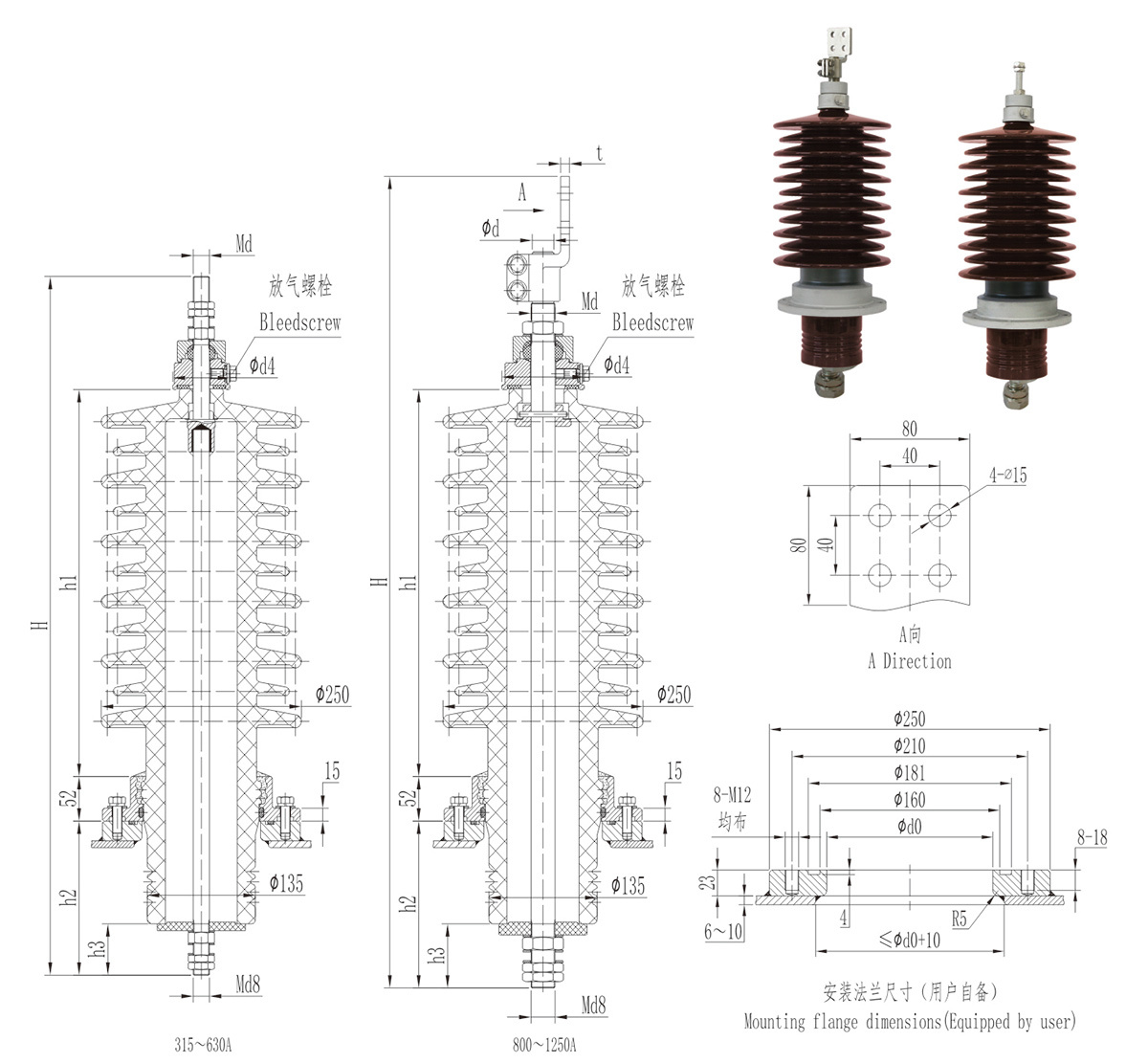

Aluminum flanged porcelain bushing outline dimensions (35kV/315~1250A Rod type bushing)



Sequence Number Code Model Dimensions Opening Arcing distance Creep distance Shield Weight
（kg）
H h2 h3 Md Φd d4 Md8 t d0 h1
1 AM.LHA.011 FBDW-35/315 806 170 50 M16×2 —— 71 M12×1.75 —— 148 452 1330 6 big 5 small 29.7
2 AM.LHB.006 FBDW-35/400 811 175 55 M16×2 —— 71 M16×2 —— 148 452 1330 6 big 5 small 30.2
3 AM.LHD.006 FBDW-35/630 816 180 60 M20×2.5 —— 71 M20×2.5 —— 148 452 1330 6 big 5 small 31.1
4 AM.LHE.002 FBDW-35/800 938 195 75 M24×1.5 —— 103 M24×1.5 10 148 452 1320 6 big 5 small 34.4
5 AM.LHF.002 FBDW-35/1000 948 195 75 M30×1.5 27 103 M30×1.5 11 148 452 1320 6 big 5 small 36.5
6 AM.LHG.002 FBDW-35/1250 948 195 75 M33×1.5 30 103 M33×1.5 12 148 452 1320 6 big 5 small 37.7
7 AM.LHA.014 FBDW-35/315 891 170 50 M16×2 —— 71 M12×1.75 —— 148 537 1570 7 big 6 small 33.7
8 AM.LHB.008 FBDW-35/400 896 175 55 M16×2 —— 71 M16×2 —— 148 537 1570 7 big 6 small 34.4
9 AM.LHD.008 FBDW-35/630 901 180 60 M20×2.5 —— 71 M20×2.5 —— 148 537 1570 7 big 6 small 35.4
10 AM.LHE.004 FBDW-35/800 1023 195 75 M24×1.5 —— 103 M24×1.5 10 148 537 1560 7 big 6 small 38.7
11 AM.LHF.004 FBDW-35/1000 1033 195 75 M30×1.5 27 103 M30×1.5 11 148 537 1560 7 big 6 small 41
12 AM.LHG.004 FBDW-35/1250 1033 195 75 M33×1.5 30 103 M33×1.5 12 148 537 1560 7 big 6 small 42.4

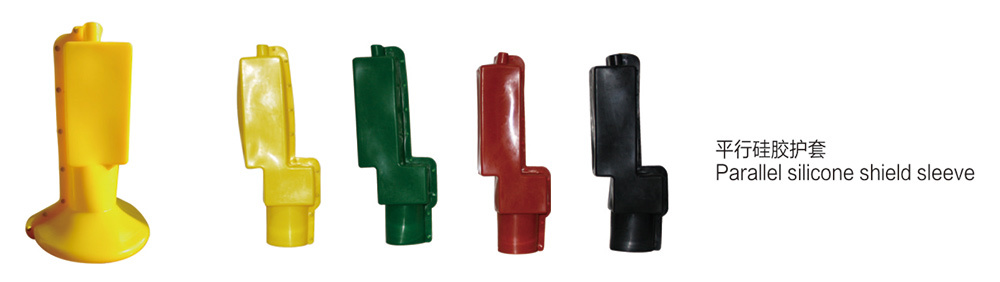

Note: add "DZ" after the code to represent the terminal, and "t" to represent the sheath. Other specifications can be customized according to customer requirements.
