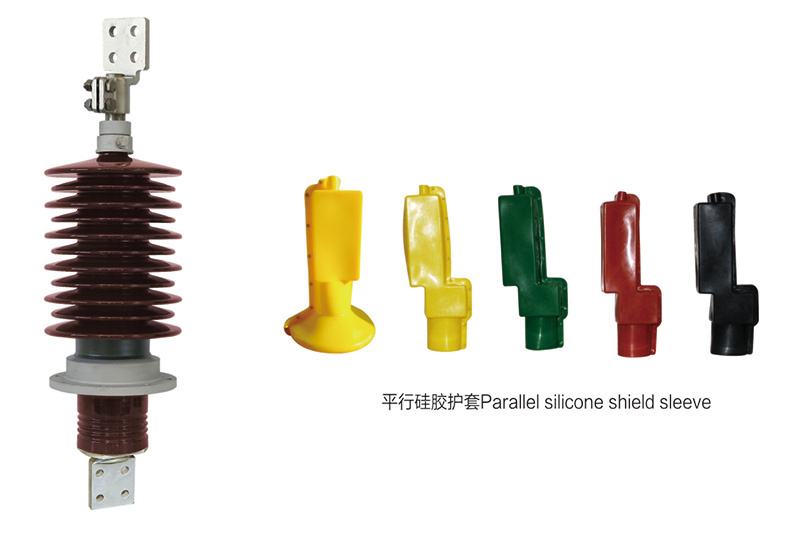

Aluminum flanged porcelain bushing (35kV/2000~3150A Rod type bushing)

The transformer sleeve is the main insulating device outside the transformer box. The lead wire of the transformer winding must pass through the insulating sleeve to insulate the lead wire between the lead wire and the lead wire between the transformer shell, and to fix the lead wire at the same time.Due to different voltage levels, the insulation sleeve has pure porcelain sleeves, oil-filled sleeves and capacitive sleeves.Pure porcelain bushing is mostly used for transformers of 10kV and below. It is to wear a conductive copper rod in the porcelain bushing, and the inside of the porcelain bushing is air insulated.The oil-filled bushing is mainly used in the 35kV class transformer. It is oil-filled in the porcelain bushing. A conductive copper pole is worn in the porcelain bushing.Capacitive bushing is composed of main insulating capacitor core, outer insulating upper and lower porcelain parts, connecting sleeve, oil pillow, spring assembly, base, equalizing ball, measuring terminal, wiring terminal, rubber washer, insulating oil, etc.It is used in high voltage transformers above 100kV.


Keywords



Product description


Aluminum flanged porcelain bushing outline dimensions(35kV/2000~3150A Rod type bushing)



Sequence Number Code Model Dimensions Opening Arcing distance Creep distance Shield Weight
(kg)
H h2 h3 Md Φd d1 t t1 d0 h1
1 AM.LHJ.001 FBDW-35/2000 1022 235 115 M42×2 38 250 15 14 148 452 1320 6 big 5 small 44.1
2 AM.LHL.001 FBDW-35/3150 1022 235 115 M48×2 42 250 16 15 148 452 1320 6 big 5 small 47.3
3 AM.LHJ.002 FBDW-35/2000 1107 235 115 M42×2 38 250 15 14 148 537 1560 7 big 6 small 49.1
4 AM.LHL.002 FBDW-35/3150 1107 235 115 M48×2 42 250 16 15 148 537 1560 7 big 6 small 52.7



Note: "T" after the code indicates the sheath. Other specifications can be customized according to customer requirements.
