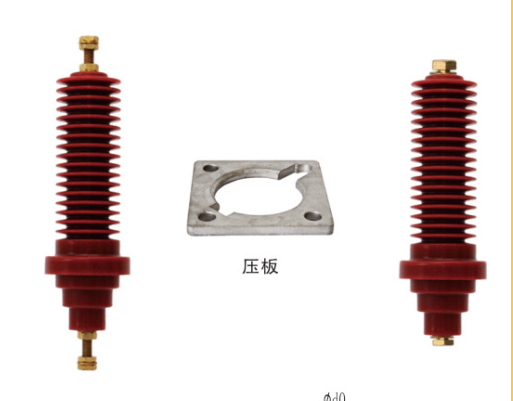

Epoxy bushing for transformer (10kV/315A)
It is the insulating sleeve that leads the transformer's internal high and low voltage leads to the outside of the oil tank, which not only insulates the ground as the lead, but also plays the role of fixing the lead.<br> Therefore, the transformer sleeve has the following requirements:<br> (1) it must have specified electrical strength and sufficient mechanical strength.<br> (2) must have good thermal stability, and can withstand the short circuit of the instant overheating.<br> (3) small appearance, small quality, good sealing performance, strong universality and easy maintenance folding.
Keywords
Category
Product description
High Voltage Bushings Up to 34.5 kV Class
High Voltage bushings assemblies are offered from 8.7 kV to 30/34 kV and from 75 kV BIL to 200 kV BIL. These bushings are provided with a clamp or a spring grip nut for internal mounting. Different types of terminals can be requested such as eyebolts or spades.

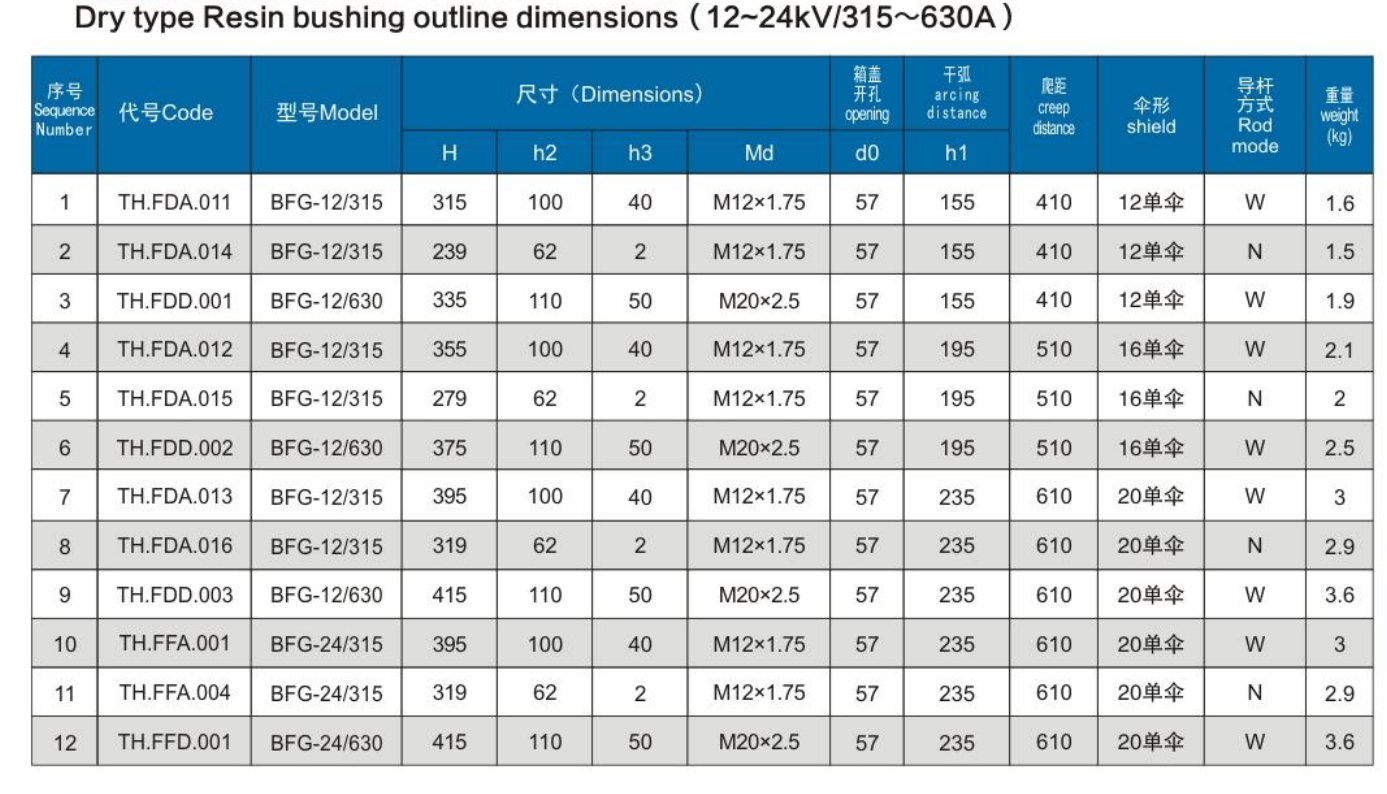

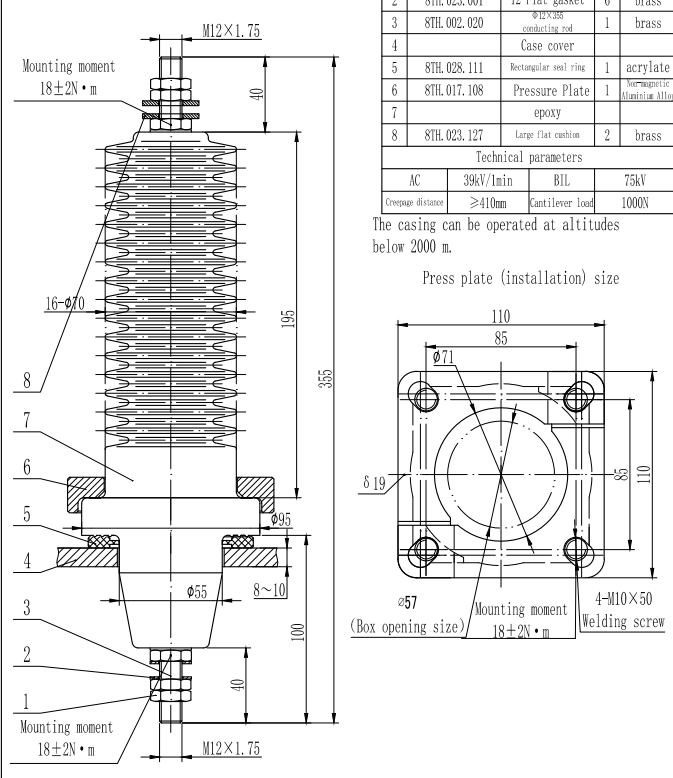

Epoxy bushing for transformer outline dimensions ( 10kV/315A）
HV Bushings from 8.7 kV to 35 kV Class and up to 417 A
