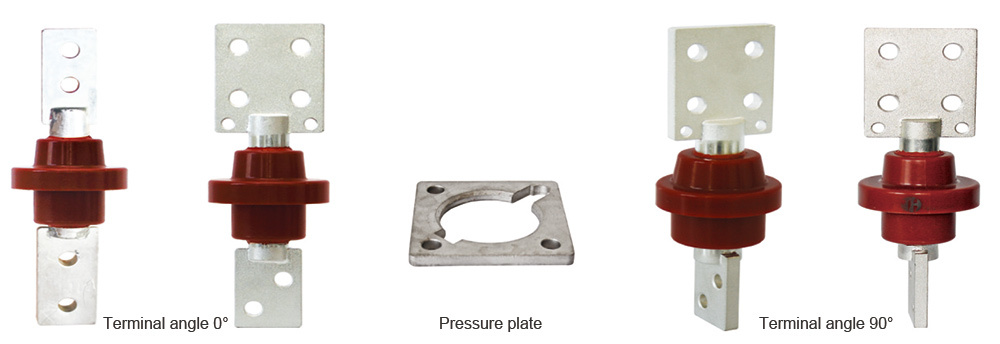

Epoxy bushing for transformer (1kV/630~5000A plate connected bushing)

It is the insulating sleeve that leads the transformer's internal high and low voltage leads to the outside of the oil tank, which not only insulates the ground as the lead, but also plays the role of fixing the lead.<br> Therefore, the transformer sleeve has the following requirements:<br> (1) it must have specified electrical strength and sufficient mechanical strength.<br> (2) must have good thermal stability, and can withstand the short circuit of the instant overheating.<br> (3) small appearance, small quality, good sealing performance, strong universality and easy maintenance folding.

Keywords

Category

Epoxy Bushing

Contact us
Leave Message

Product description

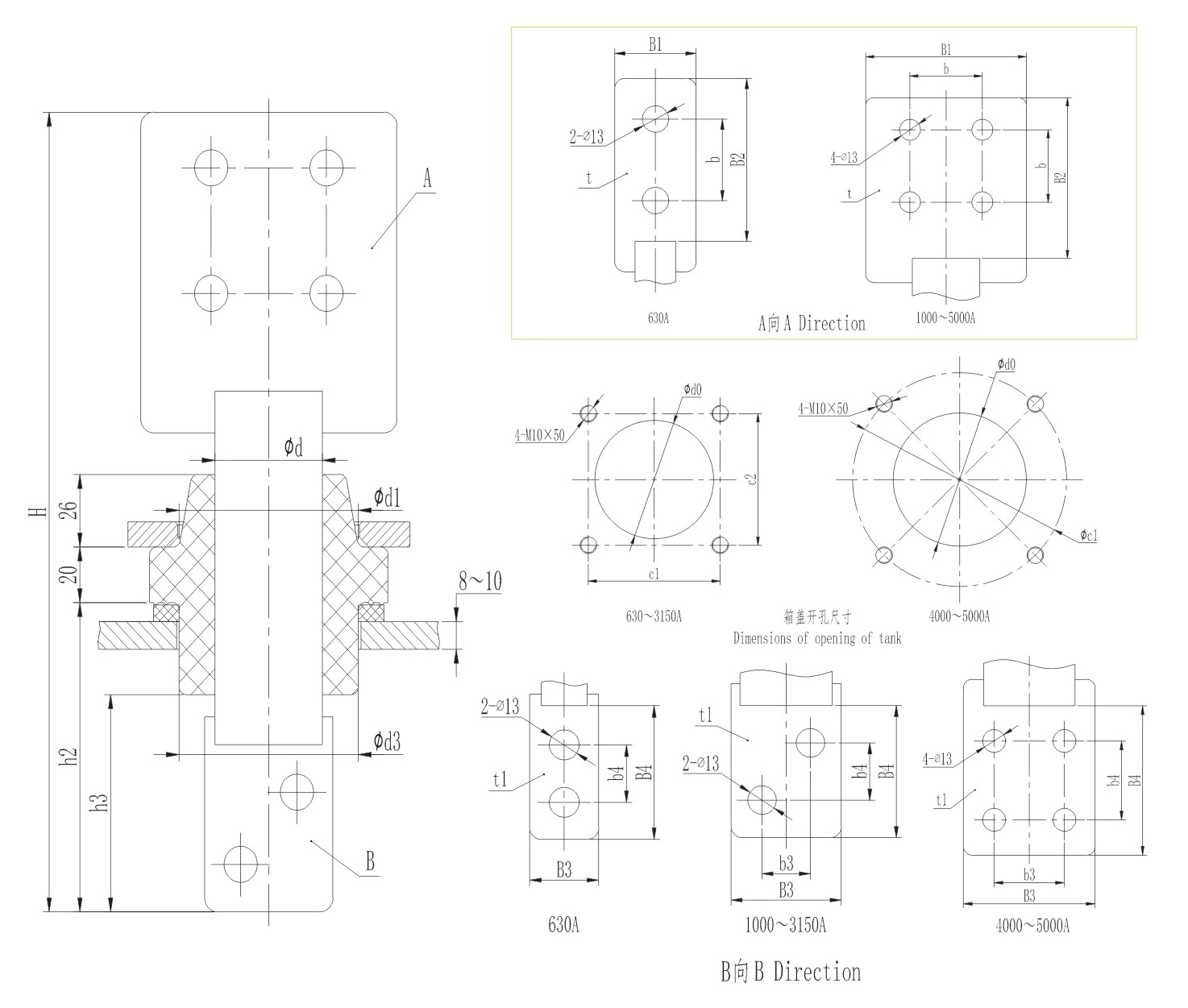

Epoxy bushing for transformer outline dimensions ( 1kV/630~5000A plate connected bushing )



Sequence Number Code Model Dimensions Opening Creep distance Terminal angel Weight
（kg）
H h2 h3 d d1 d3 B1×B2 b t B3×B4 b3×b4 t1 c1×c2 d0
1 AM.FAD.003 BFG-1/630 255 104 71 20 43 43 40×80 40 8 30×58 25 10 50×70 45 35 0 1
2 AM.FAD.004 BFG-1/630 255 104 71 20 43 43 40×80 40 8 30×58 25 10 50×70 45 35 90 1
3 AM.FAF.003 BFG-1/1000 267 111 78 30 55 55 80×80 45 10 50×60 22×26 10 80×80 57 35 0 2
4 AM.FAF.004 BFG-1/1000 267 111 78 30 55 55 80×80 45 10 50×60 22×26 10 80×80 57 35 90 2
5 AM.FAH.003 BFG-1/1600 267 111 78 36 70 70 80×80 45 12 50×60 22×26 12 80×80 72 35 0 2.5
6 AM.FAH.004 BFG-1/1600 267 111 78 36 70 70 80×80 45 12 50×60 22×26 12 80×80 72 35 90 2.5
7 AM.FAJ.003 BFG-1/2000 287 111 78 42 70 70 100×100 45 12 50×60 22×26 15 80×80 72 35 0 3.5
8 AM.FAJ.004 BFG-1/2000 287 111 78 42 70 70 100×100 45 12 50×60 22×26 15 80×80 72 35 90 3.5
9 AM.FAL.003 BFG-1/3150 287 111 78 48 70 70 100×100 45 16 50×60 22×26 20 80×80 72 30 0 4.5
10 AM.FAL.004 BFG-1/3150 287 111 78 48 70 70 100×100 45 16 50×60 22×26 20 80×80 72 30 90 4.5
11 AM.FAM.003 BFG-1/4000 364 148 115 52 80 80 125×125 60 20 75×85 40×45 20 130 82 35 0 8.5
12 AM.FAM.004 BFG-1/4000 364 148 115 52 80 80 125×125 60 20 75×85 40×45 20 130 82 35 90 8.5
13 AM.FAN.001 BFG-1/5000 364 148 115 56 80 80 125×125 60 20 75×85 40×45 20 130 82 35 0 9
14 AM.FAN.002 BFG-1/5000 364 148 115 56 80 80 125×125 60 20 75×85 40×45 20 130 82 35 90 9



Note: Other specifications can be customized according to customer needs.
