Epoxy Bushing BFG 2.5/3600 Grey Color
Our comprehensive bushings product line comprises the following: 1. Solid/bulk bushings designed for both the primary and secondary sides of distribution and power transformers. 2. Plug-in bushings specifically engineered for separable connectors, ideal for use in pad-mounted transformers or other dead-front transformer designs. 3. Bushings tailored for switchgear connections and breaker operation. 4. Insulators are available for replacements, along with bushing hardware for spare parts. We take pride in offering these high-quality products to meet the diverse needs of our valued customers.
Keywords
Category
Product description
Rated voltage:2.5kV
Rated current:3500A
Power frequency withstandvoltage:15kV/1min
Lightning impulse:45kV
Cantilever tolerance:3150N
Creepage distance:≥70mm
Epoxy Bushing
Epoxy bushings are indispensable key components on the low-voltage side of transformers. They utilize the epoxy resin's excellent comprehensive properties (electrical, mechanical, sealing, and weather resistance) to provide a safe and reliable pathway for low-voltage, high-current conductors, offering insulation, support, sealing, and connection. Their characteristics of stable performance, maintenance-free operation (compared to older oil-impregnated paper bushings), and flexible design make them an extremely common and successful standard solution for the low-voltage side of modern transformers, especially dry-type and distribution transformers.
1. High Performance
Working temperature range from -40~130℃;
Excellent injection equipment to ensure no pores inside the insulation body;
Special surface treatment to ensure the bushing should not leak in long term service;
2. Rigous Test
Dielectric Tests
Basic Impulse level test: for 1.2kV class the impulse voltage is 30kV (full wave), and for 2.5kV class, the impulse voltage is 45kV (full wave);
High voltage 50Hz & 60Hz withstand test: for 1.2kV class, test voltage is 10kV/1min., for 2.5kV class, the test voltage is 2.0 kV/ 1min.
Mechanical Strengthen Tests
Leakage test; Stud push-out test; Stud torque strength test; Cantilever test; Flange torque test
Environmental test
It includes thermal cycle test. The tested temperature range is -40~130℃, withstand 20 cycles

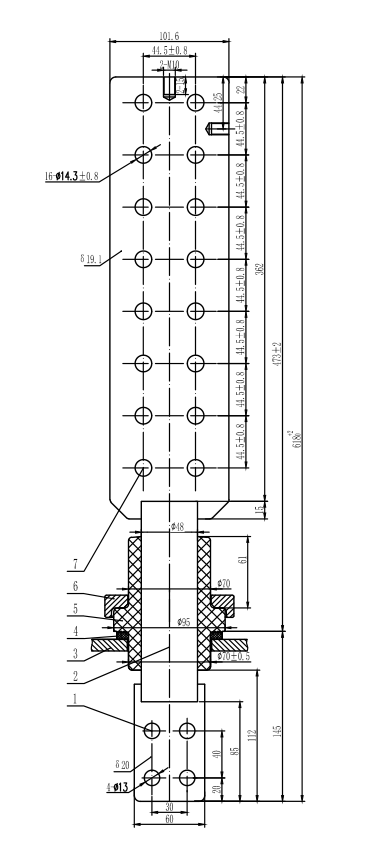

Dry type Resin bushing outline dimensions ( 3kV/1000~5000A plate connected bushing )
Note: Other specifications can be customized according to customer needs.
