Product description
Rated voltage:40.5kV
Rated current:315A
Power frequency withstandvoltage:95kV/1min
Lightning impulse:200kV
Cantilever tolerance:1000N
Creepage distance:≥1900mm

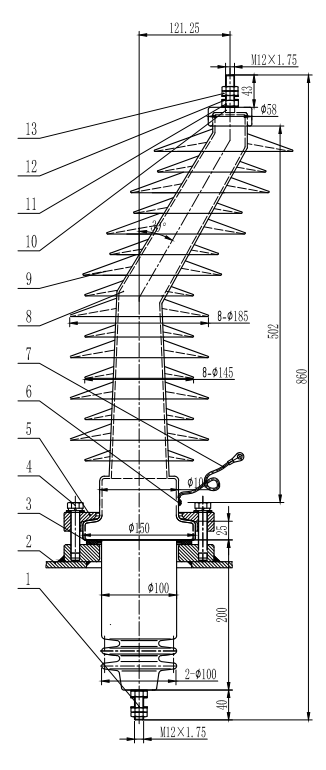

- Box Transformer Bushing is the main part of wind power box transformer. The wind power box transformer dedicated bushing is researched and developed according to the European or American box transformer, avoiding the risk that the cracking, oil leakage and explosive of porcelain bushing and epoxy resin bushing. This kind of bushing has more stable and reliable performance.
Bushings
Our comprehensive bushings product line comprises the following:
1. Solid/bulk bushings designed for both the primary and secondary sides of distribution and power transformers.
2. Plug-in bushings specifically engineered for separable connectors, ideal for use in pad-mounted transformers or other dead-front transformer designs.
3. Bushings tailored for switchgear connections and breaker operation.
4. Insulators are available for replacements, along with bushing hardware for spare parts.
We take pride in offering these high-quality products to meet the diverse needs of our valued customers.
